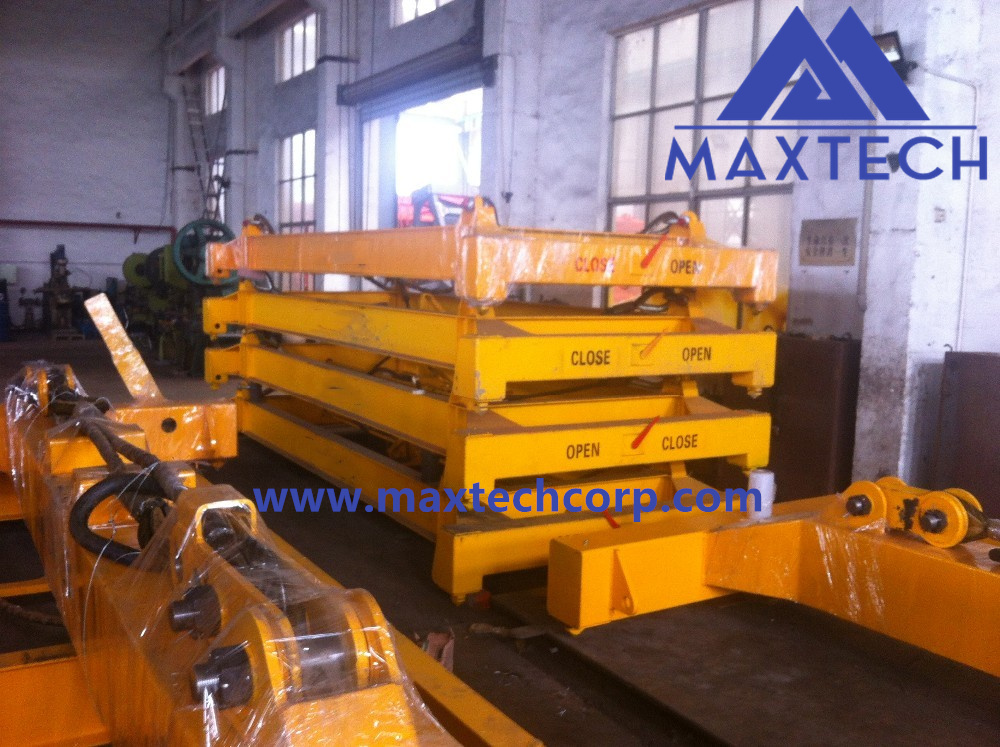

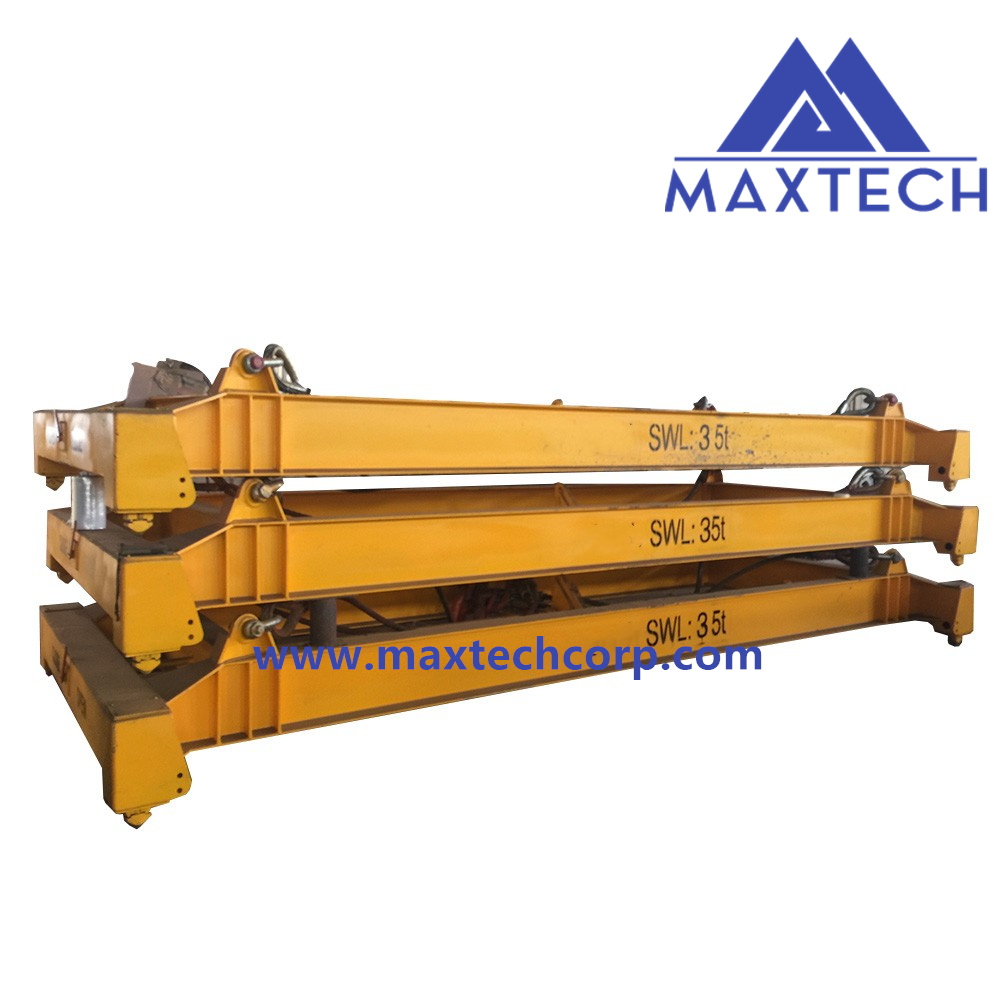

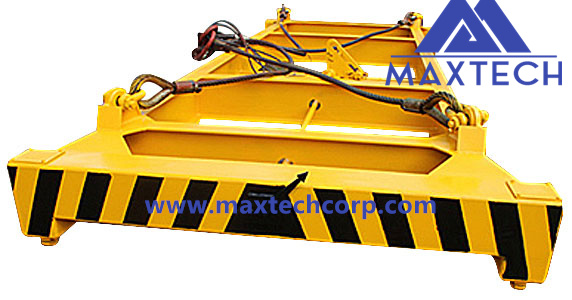

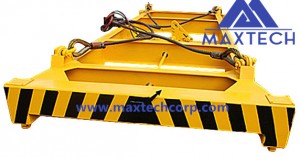

20ft 40ft semi automatic mechanical container spreader
Description
20ft 40ft Semi-automatic container spreader for standard container are fixed to the hooks of gantry, bridge and portal cranes. Twist lock control is carried out mechanically by means of wire rope pulling. Hooking/unhooking is carried out without help of crane workers. Simplicity and convenience of spreader installation allow converting from hook crane into container crane in a short time. There is no necessity to arrange power supply for the spreader and to update the crane control circuit.

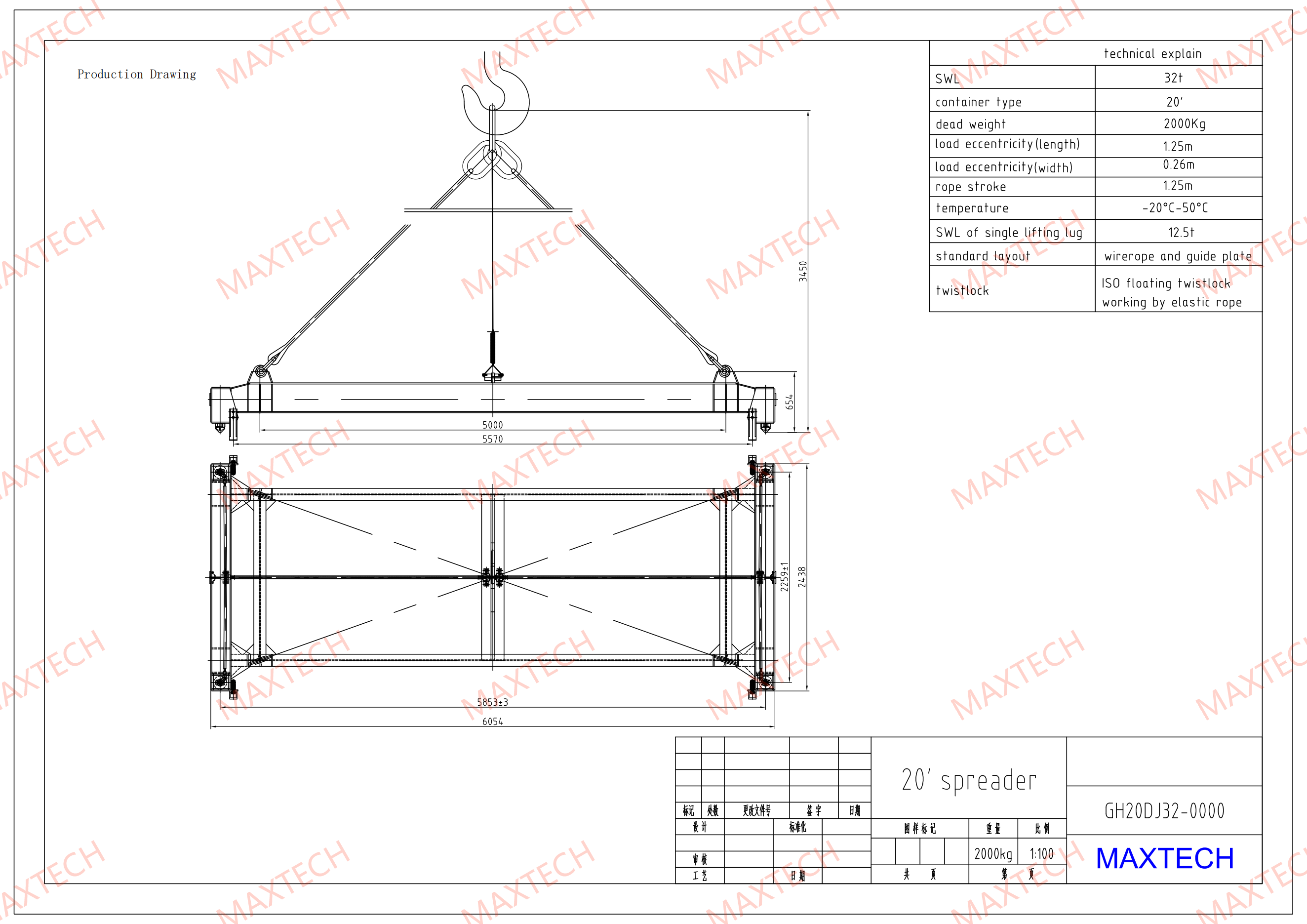

Drawing
Parameter
| For operation with ISO standard 20′ container | For operation with ISO standard 40′ container | ||
| Rated lifting load | 35t | Rated lifting load | 40t |
| Dead Weight | 2t | Dead Weight | 3.5t |
| Allowable load eccentricity | ±10% | Allowable load eccentricity | ±10% |
| Spring stroke | 100mm | Spring stroke | 100mm |
| Ambient temperature | ‘-20ºC+45ºC | Ambient temperature | ‘-20ºC+45ºC |
| Twistlock mode | ISO floating twistlock,driven by automatic spring | Twistlock mode | ISO floating twistlock,driven by automatic spring |
| Flippers device | No power, fixed flippers | Flippers device | No power, fixed flippers |
| Appilcation | Portal crane, gantry crane, crane in plant | Appilcation | Portal crane, gantry crane, crane in plant |
Our Service
Being a good adviser and assistant of client, we can help them to get rich and generous returns on their investment.
1.Pre-sale services:
a: Design customized project for clients.
b: Design and manufacture products according to clients special requirement.
c: Train technical personnel for clients.
2.Services during the sale:
a: Help clients to find reasonable freight forwarders ahead of delivery.
b: Help clients to draw solving plans.
3.After-sale services:
a: Assist clients to prepare for the construction scheme.
b: Install and debug equipment.
c: Train the first-line operators.
d: Examine equipment.
e: Take initiative to eliminate the troubles immediately.
f: Provide technical exchanging.

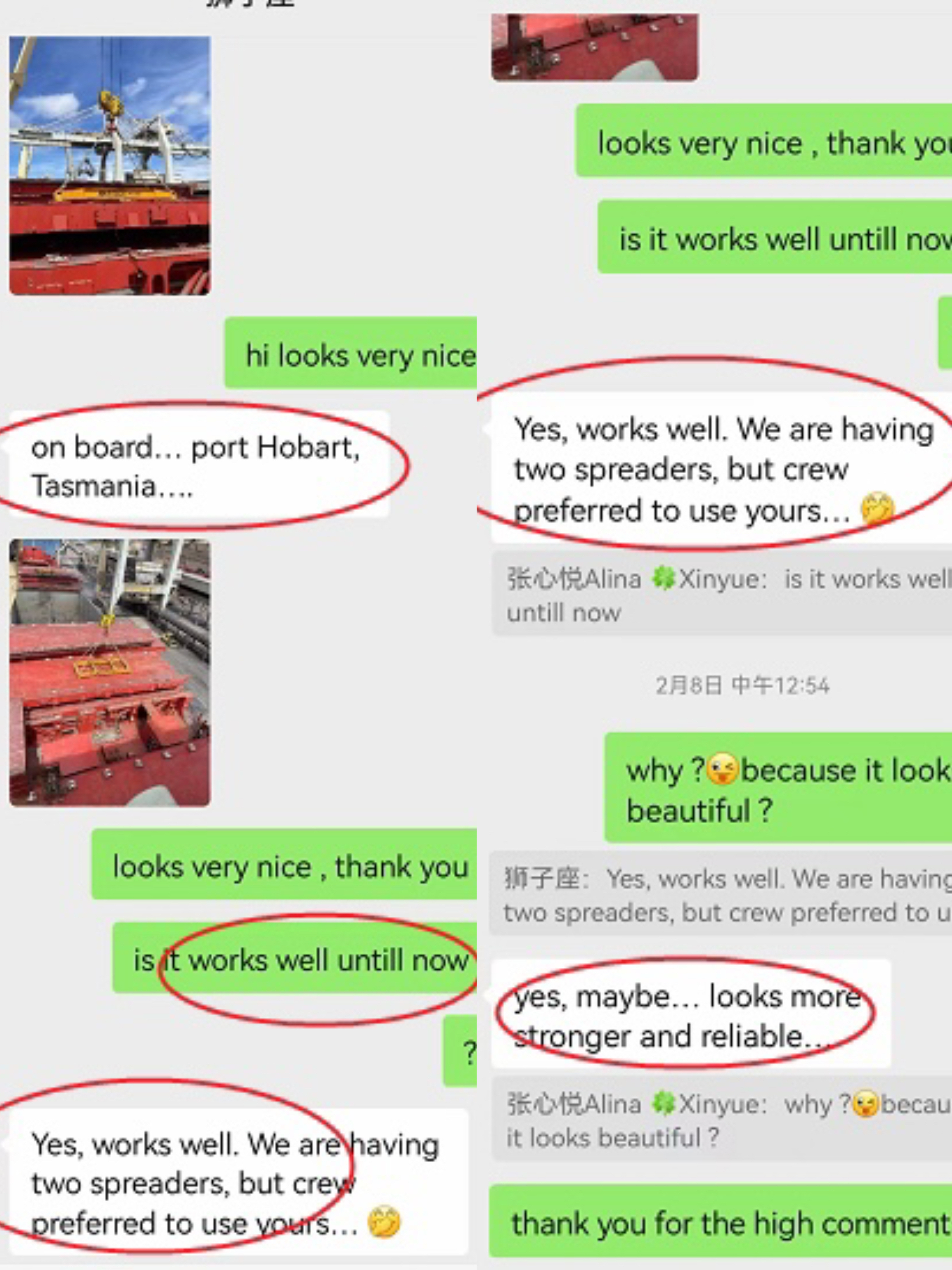

Customers’ praise
