Container and Cargo Handling shipboard Crane Fixed Stiff Boom Crane with steel wire luffing

Short Description:

Features for Ship Deck Crane also named Container and cargo handling cranes;
① Hoisting capacity up to 100 metric tons
② Boom/Jib working radius up to 50 meters
③ Matched with container spreader and grabs for handling containers and cargo.
④ Long-life surface treatment: corrosion protection
⑤ Integrated electro hydraulic drive / HPU
⑥ Stainless Steel pipes for hydraulic system
⑦ Continuous slewing
⑧ Low / high temperature operations
⑨ Anti-collision system
⑩ Remote control / operator’s cabin
⑪ Overload protection systems: MOPS & AOPS;
⑫ External hydraulic power packs
⑬ Spray metalizing
⑭ Crane certification according to selected rules and regulations
⑮ Explosive -protection design ATEX Zone 1 and 2 execution
⑯ Tugger winche


  • Class Certificate : BV ABS CCS KR RS
  • Crane type : Electrical type or Electrical -hydraulic type
  • Min.Order Quantity: 1 Piece/Pieces
  • Product Detail

    Enquiry

    Product Tags

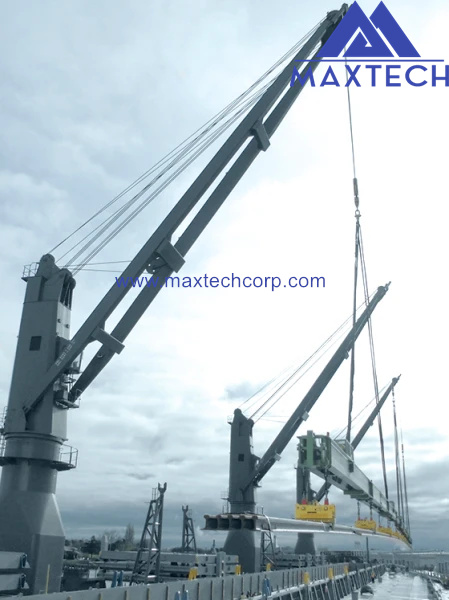

    MAXTECH stiff boom cranes are a great choice when it comes to safe, fast, and flexible material handling and unloading. Thanks to the plain and pure architecture based on a pedestal slewing design with steel wire luffing , these cranes are exceptionally low in maintenance.

    Combining minimum complexity and optimised weight with high-quality components and special features such as special corrosion treatment, stiff boom cranes are a solid and reliable asset for every working environment.

    The cranes are available with lifting moments in the range from 120 to 36,000 kNm and are supplied according to customer requirements.

    MAXTECH stiff boom cranes can be delivered within a broad range of certifications and numerous optional features.

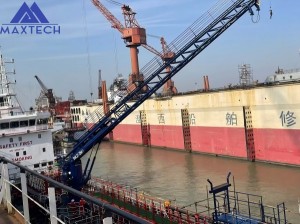

    The product is typically fixed on ship deck; or used in dock, on fixed installations, and in harbors.

     Send us enquiry with your working requirements, we gonna offer you a free quotation.

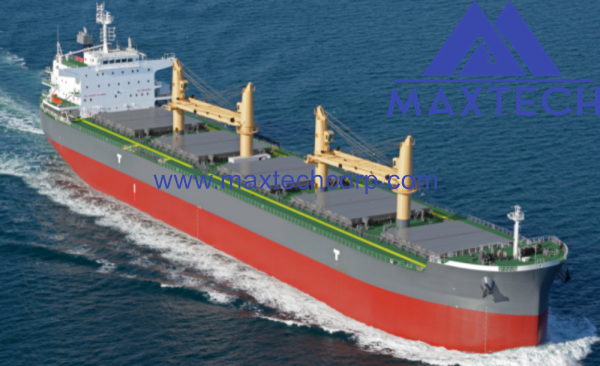

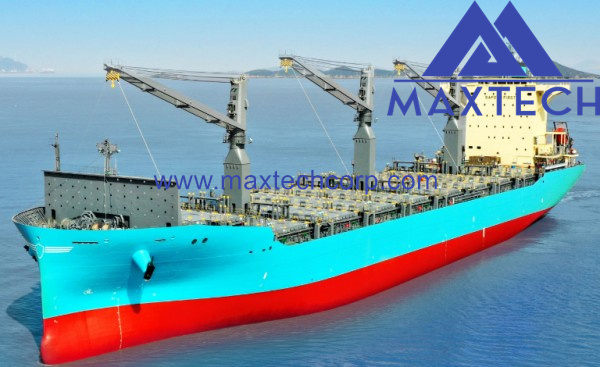

    MARINE SHIP DECK CRANE
    MAXTECH stiff boom cranes for marine applications stand for their exceptional weight/power ratio. The slender design with additional features and options make the cranes attractive for operators on service vessels for lifting and handling cargo and containers.

    Stiff boom cranes (Ship Deck Crane ) also called Container and cargo handling shipboard cranes.
    Matching with container spreaders to unload the containers;
    Matching with grabs to unload the cargo materials.

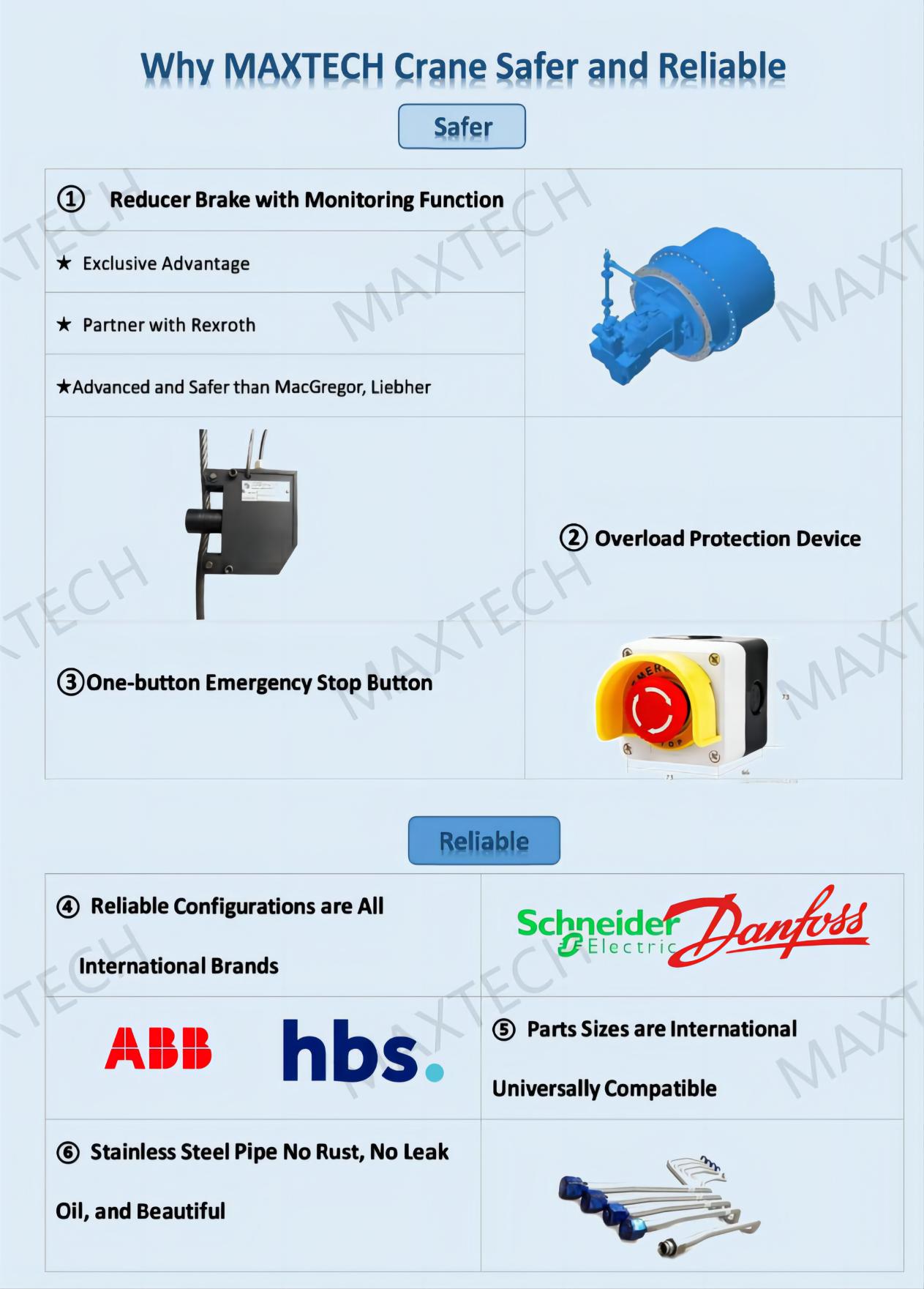

    Why MAXTECH Crane Safe and Reliable(1)_00(1)
