Hydraulic telescopic container spreader

Short Description:

Telescopic container spreader made of hanger structure, twist lock device, guiding device, a telescopic device and hydraulic system , with orientation alignment, automatic opening and locking,automatic telescopic function, in order to work quickly and accurately to container loading and unloading.

Product Detail


Product Tags

Telescopic container spreader part
Carrying capacity 41Tons
Material Q345B ;Q345B or better
Self-weight ~ 14.5T
Twist-lock Open/Close mode Droved by motor
range 20ft-45ft
Expansion time (20'to 45') ~ 35 S
Main ELC. system Siemens & Schneider
Twist lock rotation 90° ~ 1.5 S
Total Power ~11 KW
Adjust center mode ±600 mm
Environmental condition Temperature ≤50ºC, Humidity ≤90%
Max detection Limit sensors
Connect mode Pin and Shaft Connections
Lubricating mode Self-lubricating and lubricating grease
Sheet lifter control Bridge control console
Data of container Specification 20ft 40ft 45ft
Weight MAX. 41Tons

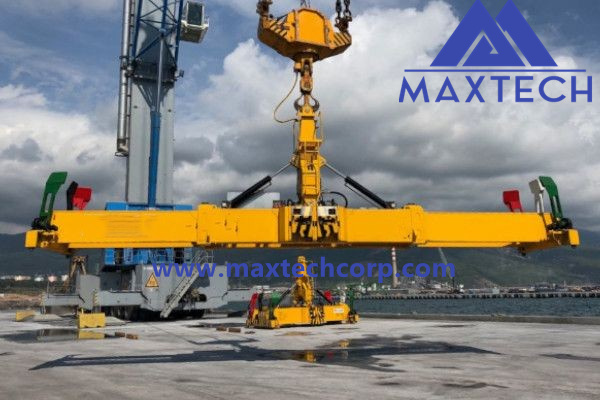

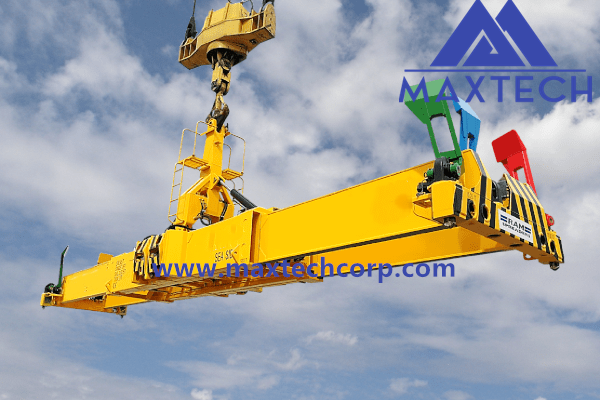

Rotary hook group part
Carrying capacity 45Tons
Material Q345B
Hook Material DG20Mn
Self-weight ~ 2.15T
Rotation mode Droved by motor
Rotation time 1 r/min
Main ELC. system Siemens & Schneider
Total Power ~ 2.2 KW
Environmental condition Temperature ≤50ºC, Humidity ≤90%
Classification group M6
Connect mode Pin and Shaft Connections
Lubricating mode Self-lubricating and lubricating grease
Sheet lifter control Bridge control console

Quality - Safe & Reliable

We insurance the quality are safe and reliable of the container spreader.

1.Self-own factory & Engineering designer
So that we can control each step of the production container spreadedr .

2.Six Sigma Quality Control Policy
Our factory produce the container spreader is according to the standard of Six Sigma.

3. 50+years of in fabrication of the container spreader
The container spreader has high safety requirements. The container spreader in our factory has double protection, electronic protection and mechanical protection to ensure the safety of the container spreader.
More than 50 years of production also ensures safety

Price - Best Price with Best Quality
In the case of the same configuration, our price will be cheaper.
Rationalization of the production process, to a certain extent, save labor costs, save materials.
Overall planning of raw material procurement, reduce raw material cost.
So we can offer a more competitive price.

Hydraulic telescopic container spreader (1)


Hydraulic telescopic container spreader (2)

Customer's feedback
Hydraulic telescopic container spreader (4) Hydraulic telescopic container spreader (5)
