semi- automatic container spreader for sale

Short Description:

Product Detail


Product Tags

If you want to know more models of thecontainer spreader, pls contact me soon !!

Product Description
Semi-Auto container spreader adapts twist-lock control unit. Main character is that drive crank bar connecting rod mechanism, twist-lock equip with plate on the rotation shaft,  inter plate guide with groove and rolling slip running unit, running unit throw the buffer spring, rotation sling connect with hook, running unit action via eccentricity lock plate control, plate with positioning unit , limit plate ,rotation angle of twist-lock. When it working via hook up and down,eccentricity lock unit close or relax running unit, running unit or rotation running plate or alongside guide groove rolling, finish the plate, rotation lock 90 degree clockwise or anti-clock rotation.
20/40ft Semi-automatic container spreader advantage:
1, Iight dead weight.
2, Operation is simple and convenient.
3, Design of the spreader is suitable for port, railway and yard.
4, Reliable with simple locking/unlocking mechanism and all four twist lock activated throught one manually operated handle.
5, The corners of the spreader has been installed the guide plates, facilitate fixed the container
Lifting Capacity (t) 32T (under spreader) / customized
Dead Weight (t) 2T
Wire Rope Spec. (mm) DIA32MM X4 pcs
with min breaking strength of 1770N/mm2
Rotatable Mode ISO standard fixup rotatable mode
Rotatable Device Semi-flexible cable
Flexible Cable Journey ~1.25m / customized
Allowed Load Eccentricity Length 1.25M width 0.26M
Temperature temperature: -20° - 50°
Length of Spreader (mm) ~6054 / ~ 11984 / customized
Width of Spreader (mm) ~2438 /customized
Fit Crane’s Type A crane which have single hoist framework
Fit 20′container  / 40′container

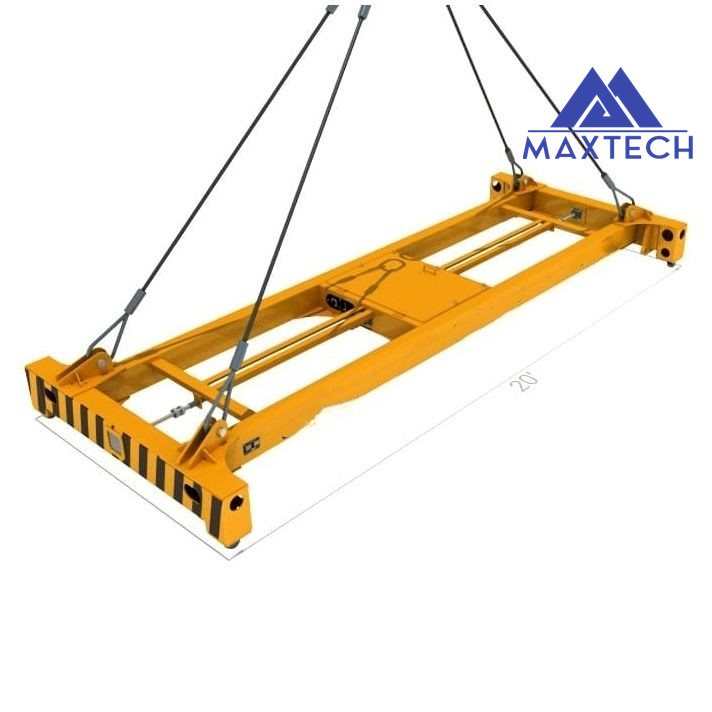

Reference Drawing

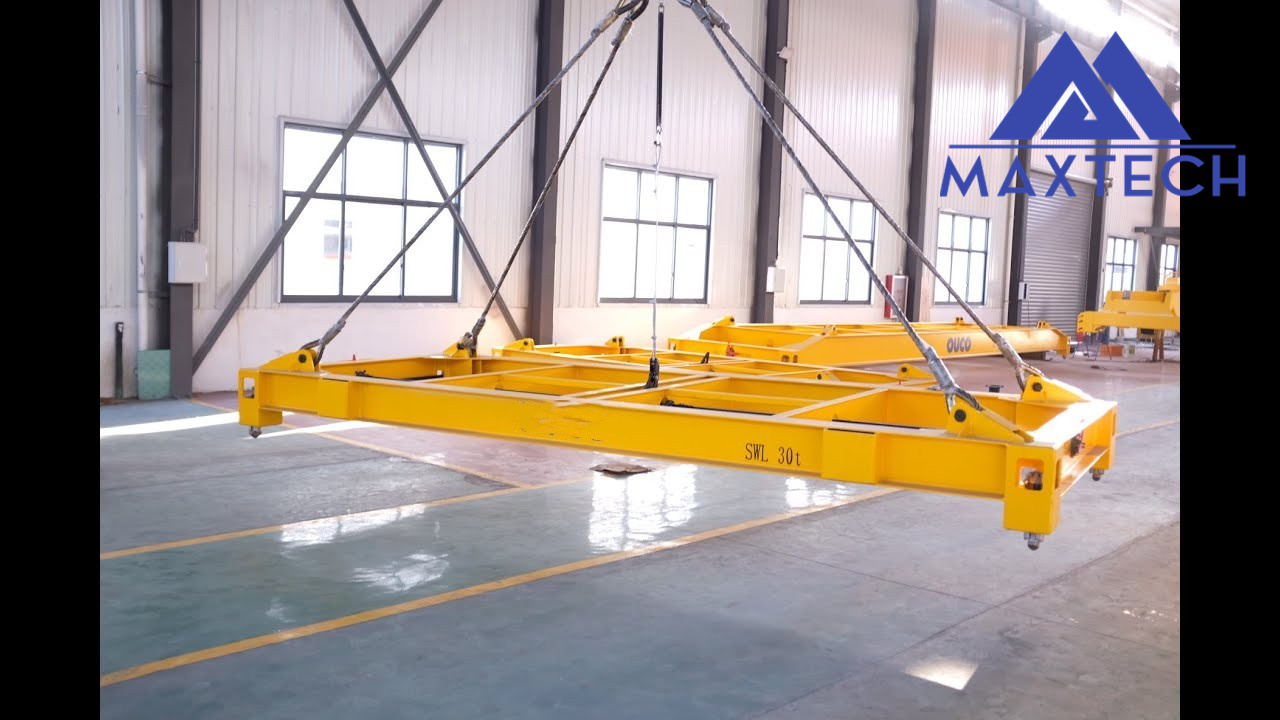

20FT & 40FT Semi-Automatic Mechanical Container Spreader for Container Lifting
MAXTECH provides
1. Designs meets customer specification.
2. Fast spare-parts delivery across the world.
3. Acceptance testing including certification such as BV, LRS, GL, DNV, ABS, and etc.

Quality - Safe & Reliable

We insurance the quality are safe and reliable

1.Self-own factory & Engineering designer
So that we can control each step of the production.

2.Six Sigma Quality Control Policy
Our factory production is according to the standard of Six Sigma.

3. 50+years of in fabrication of the container spreader
The container spreader has high safety requirements. The container spreader in our factory has double protection, electronic protection and mechanical protection to ensure the safety of the container spreader.
More than 50 years of production also ensures safety

Price - Best Price with Best Quality
In the case of the same configuration, our price will be cheaper.
Rationalization of the production process, to a certain extent, save labor costs, save materials.
Overall planning of raw material procurement, reduce raw material cost.
So we can offer a more competitive price.
