Twin- lift 20ft/40ft container spreader

Short Description:

1. twin lift container spreader have reliable quality.

2.The twin-lift container spreader is suitable for 20ft,40ft,45ft standard container lift.

3. The twin-lift container spreader is suitable for lifting two 20ft containers.

4. Our container spreader drive by hydraulic system.

Send email to us Download File

Product Detail

Enquiry

Product Tags

This new type container spreader is suitable for frequent work place.

Container spreader

Twin-lift container spreader can lifting twin 20ft containers at the same time. It made of hanger structure, rotary lock device, guiding device, a telescopic device and hydraulic system , with orientation alignment, automatic opening and locking, automatic telescopic function, in order to work quickly and accurately to container loading and unloading.The sling is provided with a mechanical or hydraulic telescoping mechanism, in20ft to45ft range expansion, in order to adapt to different specifications of container handling requirements.Guide device has a fixed guide plate and belt turning plate two, to achieve the spreader is positioned, with fixed guide spreader used for tire type gantry crane, rail type gantry crane for loading and unloading machinery, and with automatic turning plate (4 of each turning plate can be controlled separately) of the spreader is generally applied in the shore container cranes.

We can design according to customer requirements.

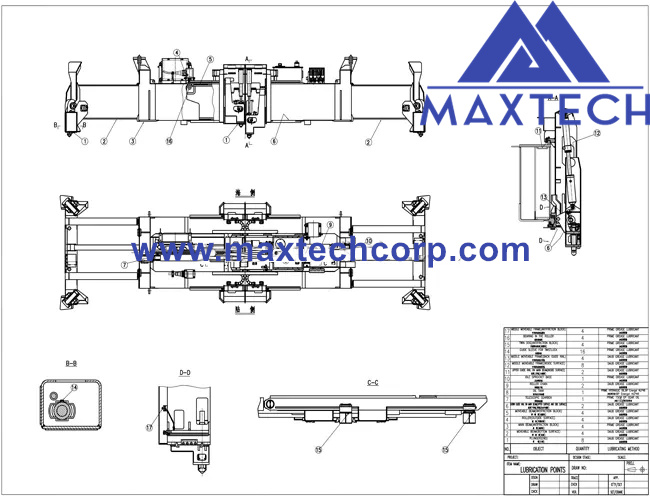

Container spreader drawing

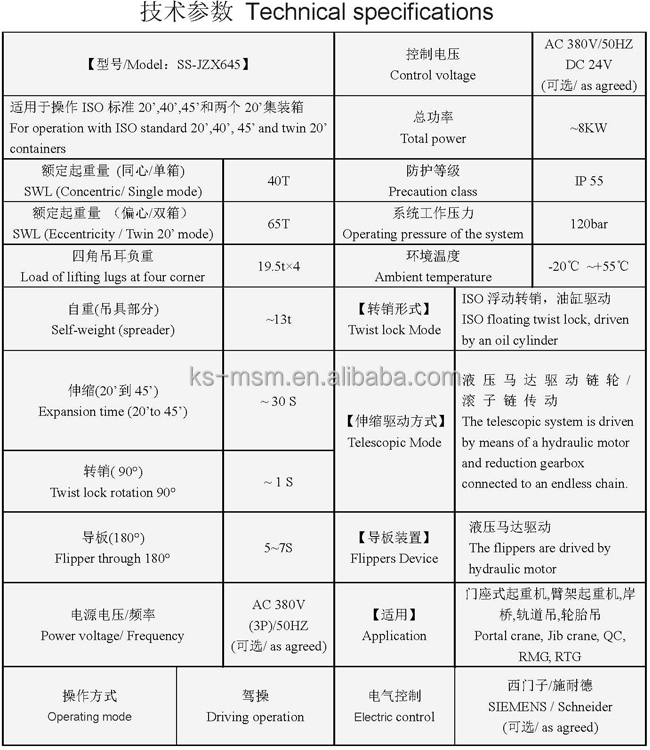

Container speader technical specifications

20ft~45ft twin-lift hydraulic telescopic container lift spreader

Our Service

1. Our factory provide machine testing when customer come to our factory to see this machine.

2. We provide detail machine technical specification, electric diagram, installation book, operating manual, drawings.

3. We can provide engineers to customer's factory to help installation and training workers if customer required.

4.Spare parts is available when u need.within warranty,we will provide without any charge.Over warranty,we can provide spare parts just with factory cost.We will take response and provide technical support and repair of the whole machine lifetime.
