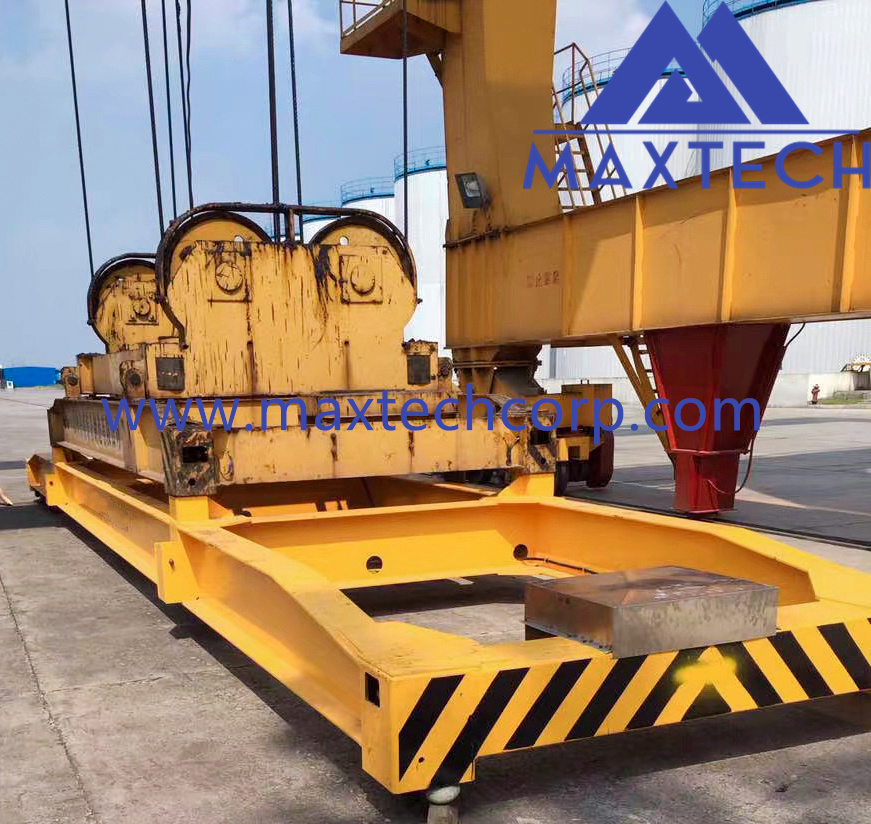

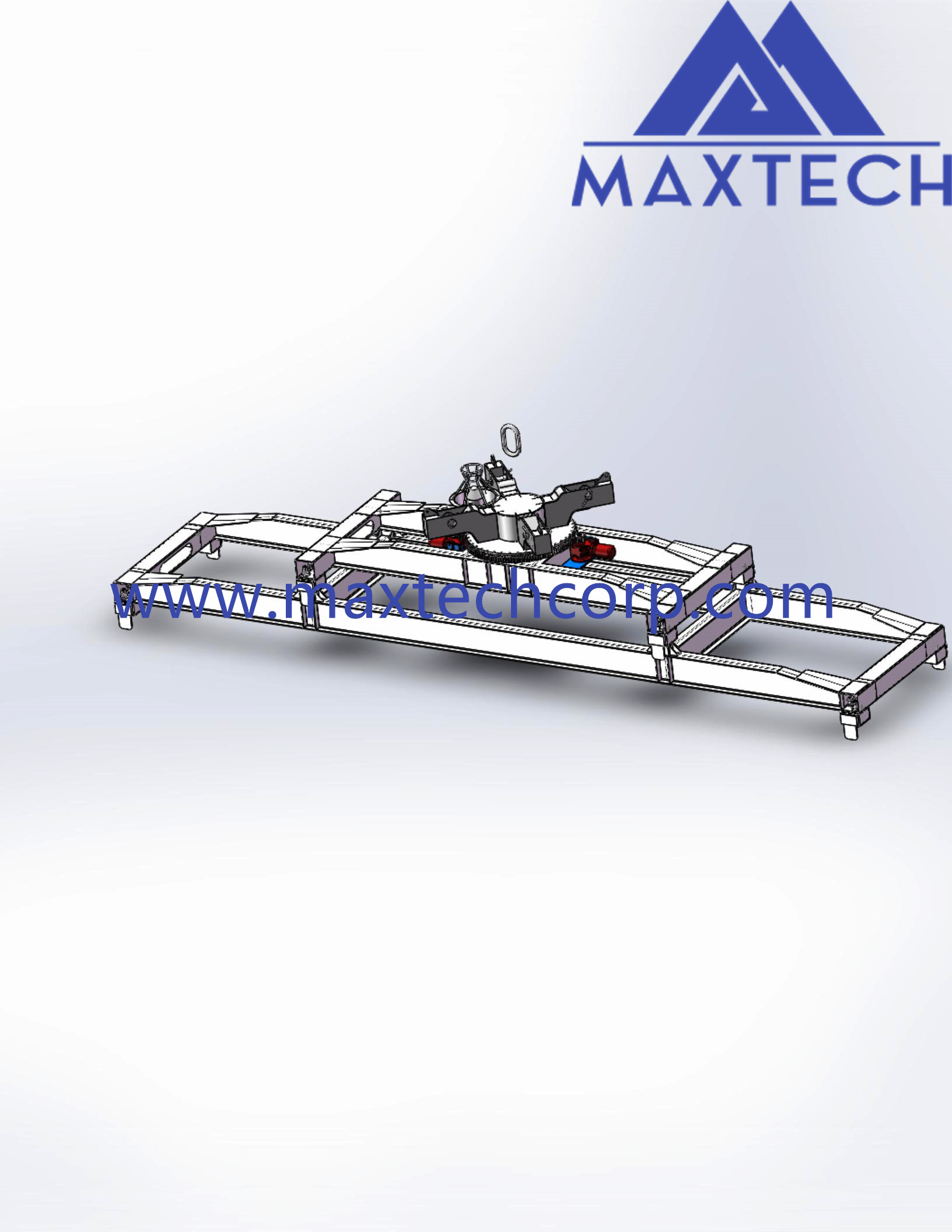

Combined Container Spreader
| 【Model:JZX420] | Control voltage | AC 220V/DC 24V | ||
| For operation with ISO standard 20’40′container | Total power | <2.5KW | ||
| Rated lifting load | 40T | Precaution class | IP55 | |
| Allowable load eccentricity | ±10% | Flippers Model | Fixed Flipper | |
| Self-weight (spreader) | ~7.8T | Ambient temperature | -20℃~+55℃ | |
| Twist lock rotation 90° | ~1S | Twist lock Mode | ISO floating twist lock, driven by a motor | |
| Power voltage/Frequency | AC 380V(3P)/50HZ | Application | QC,RMG,RTG, Portal crane | |
