Water Cannon and Water Tank
Parameters
|
Model |
DMC-100 |
|
Throw range/spray range |
100-110m REAL Distance,inspection accepted |
|
Fan power |
55kw |
|
Pump power |
11kw |
|
Total power |
66kw |
|
Dimensions |
2850 x 2180 x 2300 mm (L x W x H) The final approved production drawing shall prevail |
|
Weight |
2100kg |
|
Mist particle size |
50-150 micron |
|
Start method |
VFD start |
|
Power supply |
380V 60HZ 3PHASE |
|
Material |
Standard carbon steel material with electrostatic spray |
|
Color |
customized |
|
Water consumption |
120-150L/min |
|
Electricity consumption |
66kw/h |
|
Noise (dB) ± 3dB |
75dB(A)@10m |
|
Pump type |
CNP brand centrifugal pump with ABB motor |
|
Pump pressure |
1.9~2.2Mpa |
|
Water ring quantity |
2 rings |
|
Nozzle quantity |
110pcs SS304 material nozzle |
|
Nozzle diameter |
1.0/1.2 |
|
Horizontal rotating range |
0°~340°adjustable |
|
Horizontal rotating device (left- right) |
High strength rotating mechanism Maintenance free & Long life-time Powered by hydraulic pump station with larger loading capacity , heavy duty .
|
|
Pitch angle |
-5°~40° |
|
Up and down pitch device (up- down) |
Dual hydraulic cylinders |
|
Electrical control cabinet |
SS201 double layer
stainless steel material |
|
Te Text reader
|
Equipped touch screen |
|
PLC |
Equipped SIEMENS PLC |
|
Operating mode |
Full auto with remote control |
|
Remote control distance |
100m |
|
Protection level |
IP55 |
|
Water source |
Suggest PH value 6-8 |

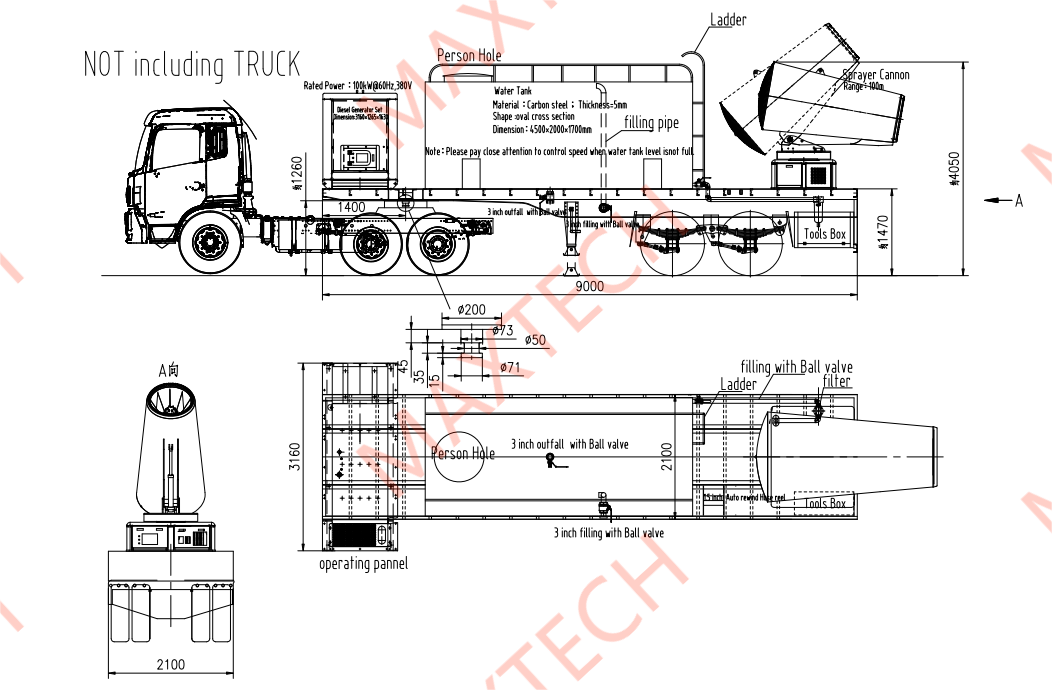

Drawing
