Deck Container Crane 30-65t for Container Vessel
Product Introduction

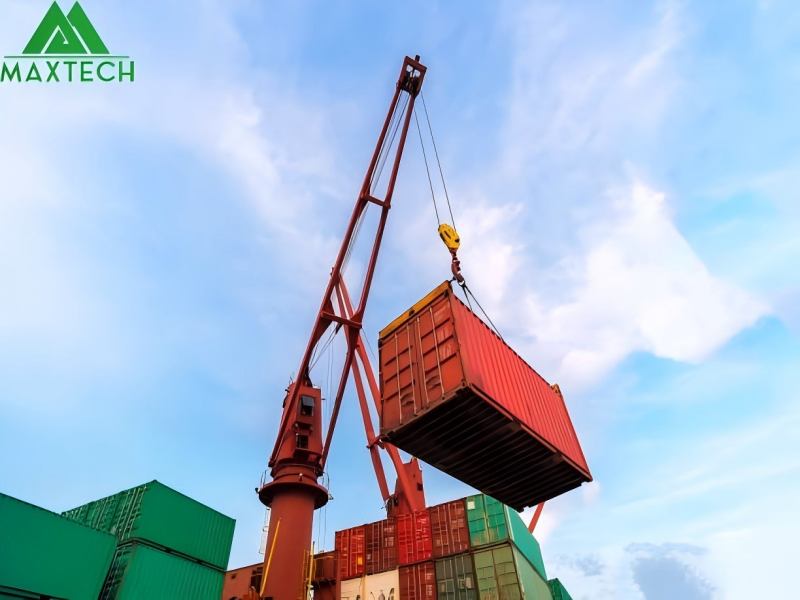

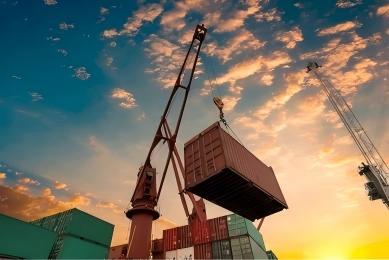

The MAXTECH Container Deck Crane is a deck‑mounted crane specially designed for container handling, installed on container ships, multi‑purpose vessels and barges. It is equipped with a telescopic spreader that can quickly adapt to 20ft, 40ft and 45ft containers. Lifting capacity ranges from 30 to 65 tonnes.
The crane comes standard with a hydraulic twistlock system, enabling the operator to lock or release the container with a single button from the cab – eliminating manual intervention and significantly improving efficiency and safety. The spreader uses four‑point locking, and an advanced anti‑sway control system effectively eliminates load swing, ensuring precise alignment.
The hoist mechanism uses variable‑frequency drive or hydraulic stepless control, with hoisting speeds of 0 to 20 m/min for fast and smooth response. The slewing mechanism provides full 360° rotation, covering the entire deck area. The cab offers wide visibility and ergonomic controls, allowing the operator to clearly view the spreader and container corner castings.
An optional automatic container weighing system is available to display real‑time container weight, helping the operator manage load distribution. The crane can be supplied with classification society certificates from BV, ABS, CCS, NK, LR, etc., suitable for worldwide routes.
| Product range | ||||
| Crane type | MAX 150 | MAX 250 | MAX 500 | MAX 800 E |
| Max. capacity | 120-180 t | 250 t | 400-500 t | 800-1000 t |
| Typical outreach | 33 m | 33/36 m | 33/36 m | 39 m |
| Auxiliary Hoist | 45 t | 45 t | 60 t | 60 t, 10 t sling |
Certificates
1. Manufacturing Standards: The product is designed and manufactured in strict accordance with the latest effective specifications of the classification society at the time of contract signing to ensure that the product quality meets industry standards.
2. Classification Societies: BV, CCS, ABS, KR, LR , et.
3. Testing and Certification: Before leaving the factory, the equipment needs to undergo strict tests, including performance tests (lifting, luffing, and slewing movements with rated and overload loads), emergency stop confirmation, manual brake release tests, limit switch confirmation (under no - load conditions), and insulation resistance measurement. The test records of each item will be submitted to users to ensure reliable product performance.
4.Industry Certifications: Quality certificates and factory test reports are provided to provide strong evidence for product quality and allow users to use the product with confidence.Safety Certifications: CE (European Union), ISO 9001(International Organization for Standardization)
