BV Class API-2C Offshore 3T@39M TelescopicBoom Crane
Features:
1. Compliance and Performance: Designed to meet API - 2C standards and certified by BV, this 3T@39M marine crane delivers exceptional lifting performance for offshore operations.

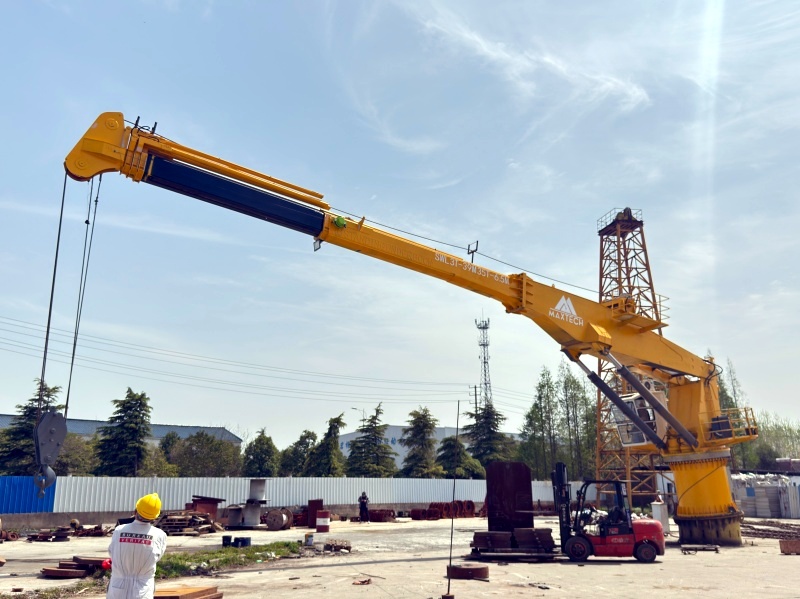

2.Testing and Certification: Before leaving the factory, the equipment needs to undergo strict tests, including performance tests (lifting, luffing, and slewing movements with rated and overload loads), emergency stop confirmation, manual brake release tests, limit switch confirmation (under no - load conditions), and insulation resistance measurement. The test records of each item will be submitted to users to ensure reliable product performance.
This is 3T@39M Cabin operation function display:
3.Installation & Engineer Support: Engineers will be deployed to the site for on-site installation guidance. The entire installation and commissioning process typically takes 2-3 days at maximum, ensured by the crane’s modular design and pre-assembled structure.
4. Explosion-Proof Excellence: Designed with advanced explosion-proof technology, this marine crane is specifically engineered for high-hazard environments, such as offshore oil platforms, gas refineries, and other volatile industrial settings. It adheres to strict international explosion protection standards, safeguarding against potential risks posed by flammable gases and explosive atmospheres. This feature, combined with its robust construction and precision engineering, makes it the ideal choice for clients seeking a reliable, compliant, and safety-first solution for critical offshore operations.
1. Whether used for port loading/unloading or demanding offshore tasks, its rugged construction and precision control ensure stable operation in harsh marine environments. It has become the preferred solution for professional marine lifting applications.
2. MAXTECH marine cranes are backed by multiple international certifications, including ABS, BV, CCS, and CE, guaranteeing compliance with global safety and quality standards.
3. Available in multiple configurations to suit different workloads: 3t@39m, 10t@15m, 35t@6.5m
4. Equipped with a wireless remote control system, the crane offers intuitive and safe operation, minimizing labor intensity and enhancing efficiency in complex lifting scenarios.
| TECHNICAL PARAMETERS | |||||
| 1. | (SWL) | 3T | 10T | 35T | |
| 2. | MAX.WORKING RADIUS | 39M | 15M | 6.5M | |
| 3. | MIN.WORKING RADIUS | 6.5M | |||
| 4. | LIFTING SPEED (goods) | ~15m/min(<12T) | ~5m/min(≥12) | ||
| 5. | LIFTTING HEIGHT | 30m | |||
| 6. | SLEWING SPEED | ~0.6r/min | |||
| 7. | SLEWING ANGLE | 360° | |||
| 8. | LUFFING TIME | ~100S | |||
| 9. | SPEED | 1480r/min | |||
| 10. | Wire rope multiples | 5 | |||
| 11. | Rope capacity | 200m | |||
Manufacturing Standards
The product is designed and manufactured in strict accordance with the latest effective specifications of the classification society at the time of contract signing to ensure that the product quality meets industry standards.
Classification Societies: BV( Bureau Veritas), CCS (China), ABS (USA), KR(Korea), LR (Lloyd's Register), et.
Industry Certifications
Quality certificates and factory test reports are provided to provide strong evidence for product quality and allow users to use the product with confidence.Safety Certifications: CE (European Union), ISO 9001(International Organization for Standardization)
