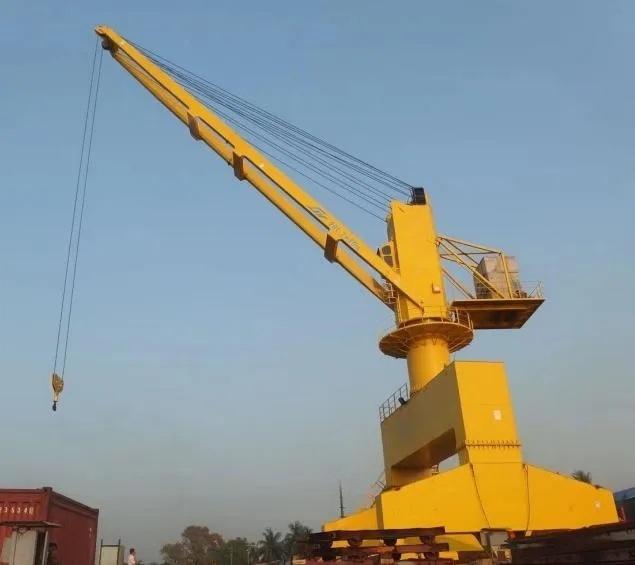

45T40M Jetty Crane All-Electric Rail Moving/Mounted Crane Port Crane for Port Harbour Operation
Product Overview
The Maxtech 45T/40M All-Electric Jetty Crane is a high-performance, highly reliable port handling equipment designed for modern terminals and harbor operations. Powered entirely by electricity and operating on rails (Rail-Moving), it offers a rated lifting capacity of 45 tons and a maximum working radius of 40 meters, making it suitable for efficient loading and unloading of containers, bulk cargo, and general cargo. The equipment supports certification applications for major international classification societies such as ABS, BV, CCS, DNV, and KR, complying with global marine engineering standards.
Typical Applications
1. Container terminal shoreline loading and unloading operations
2. Bulk terminal coal and ore grab operations
3. General cargo terminal steel and equipment handling
4. Multimodal transport yards and port logistics hubs
Core Advantages
1. All-Electric Drive, Energy-Efficient and Eco-Friendly
Operates on power, with no hydraulic system, zero emissions, and low noise, meeting green port operational requirements.
2. Powerful Performance and Flexible Operation
Rated lifting capacity of 45 tons, maximum working radius of 40 meters, minimum working radius of 12 meters, and lifting height of 50 meters, covering various vessel operational needs.
3. Highly Reliable Structural Design
Main structure made of high-strength steel, welding processes compliant with GB3811, GB6067, and other national standards, with key components undergoing non-destructive testing.
4. Intelligent Control System
Frequency conversion motor drive, equipped with PLC control and multiple safety protections (overload, limit, wind resistance, emergency stop, etc.).

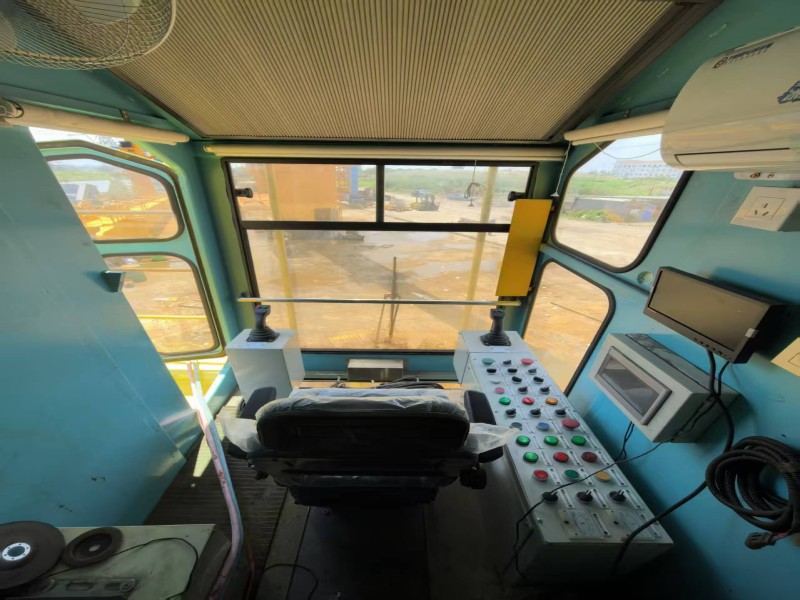

Cabin features a linked control console, dual master controllers, display screen, and air conditioning system, with optional wireless remote control.
| 安全负荷 Safe working load： | 45T | |
| 最大工作半径 Max. working radius | 40m | |
| 最小工作半径 Min. working radius： | 12m | |
| 起升高度 Hoisting height： | 50m | |
| 回转角度Slewing angle： | ≤360° | |
| 轮压 Wheel pressure | 210kn | |
| 轨距 Track distance | 15.3m | |
| 使用电源 power supply | 380V 50Hz 3P | |
| Working speed | 起升 hoisting | 0～40m/min |
| 变幅时间luffing time | 65s | |
| 旋转 slewing | 0.8rpm | |
| 行走 Traveling | 0~25m/min | |
5. Full Rail-Mounted Deployment
Operates on R65 rails, adaptable to standard terminal rail layouts for full coverage operation.
6. Adaptability to Harsh Environments
Operational temperature range: -40°C to 45°C, humidity ≤95%, suitable for high-salt spray, humid, and marine climates.
7. Global Certification Support
Certification applications available for ABS, BV, CCS, DNV, KR, CE, and other classification societies based on client requirements, ensuring international compliance.
Industry Certifications
Quality certificates and factory test reports are provided to provide strong evidence for product quality and allow users to use the product with confidence.Safety Certifications: CE (European Union), ISO 9001(International Organization for Standardization)
We have established cooperative relationships with several renowned enterprises that hold leading positions in their respective fields.
Maxtech Rail-Mounted Jetty Crane——Powering Modern Ports with Electric Drive, Intelligent Control, and Global Certification for Efficient and Green Operations!
