Telescopic Boom Crane Ship Deck Crane for Offshore and Wind Industry

Short Description:

1. Flexible Lifting Capacity: 2-100 ton lifting range, 3-40m working radius, meets various offshore operation needs.

2. Global Certification Support: Certifications available for ABS, BV, CCS and other classification societies.

3. Multi-Scenario Application: Designed for offshore, marine and wind power applications.

4. Intelligent Remote Control: Wireless remote operation for enhanced safety and convenience.

5. Custom Explosion-Proof Options: Explosion-proof ratings customizable for hazardous environments.

6. High-Strength Structure: Marine-grade anti-corrosion materials ensure durability in harsh conditions.

7. Efficient Power System: Hydraulic or electric drive options with fast response and high efficiency.

Send email to us Download File

Product Detail

Enquiry

Product Tags

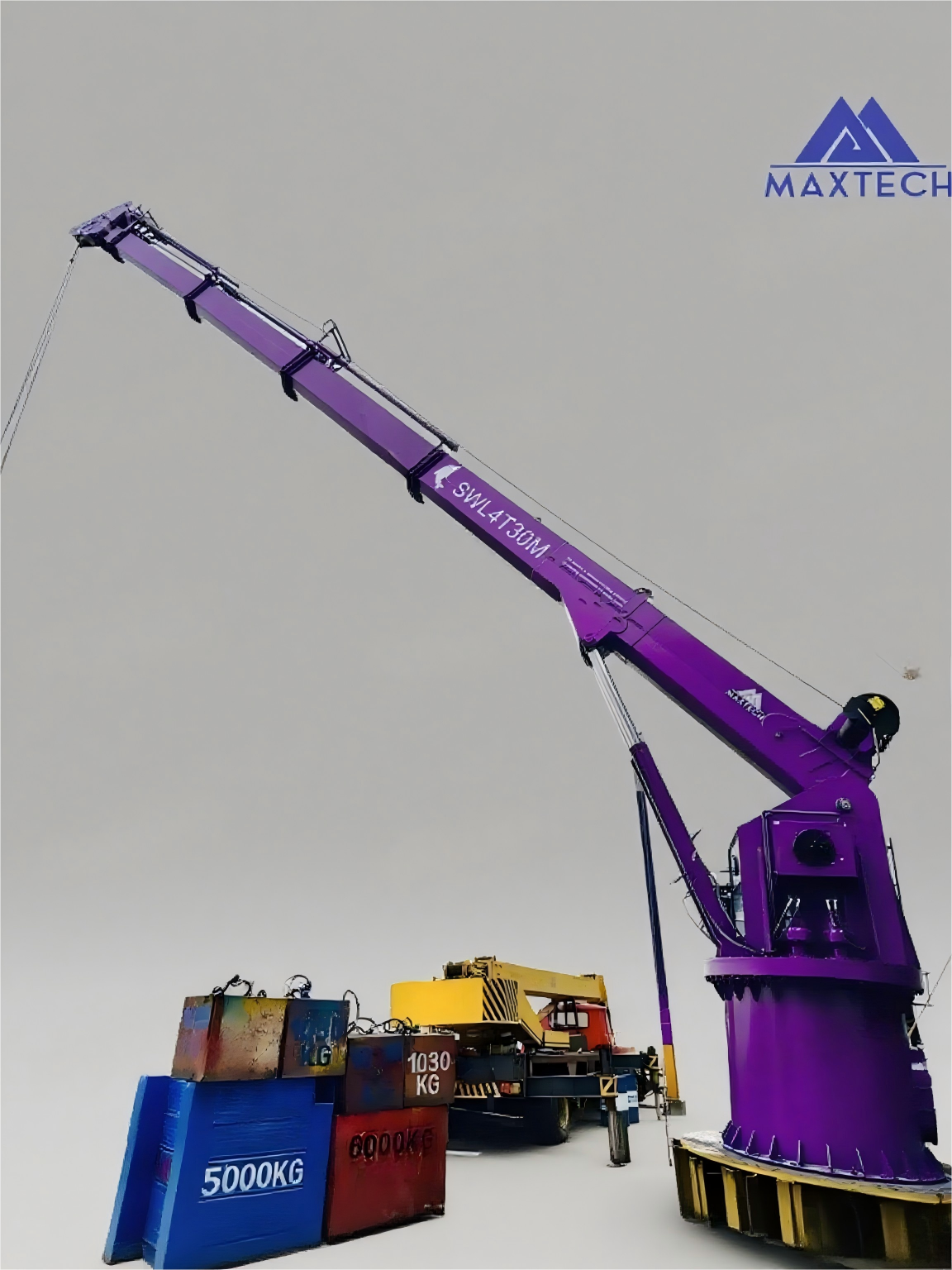

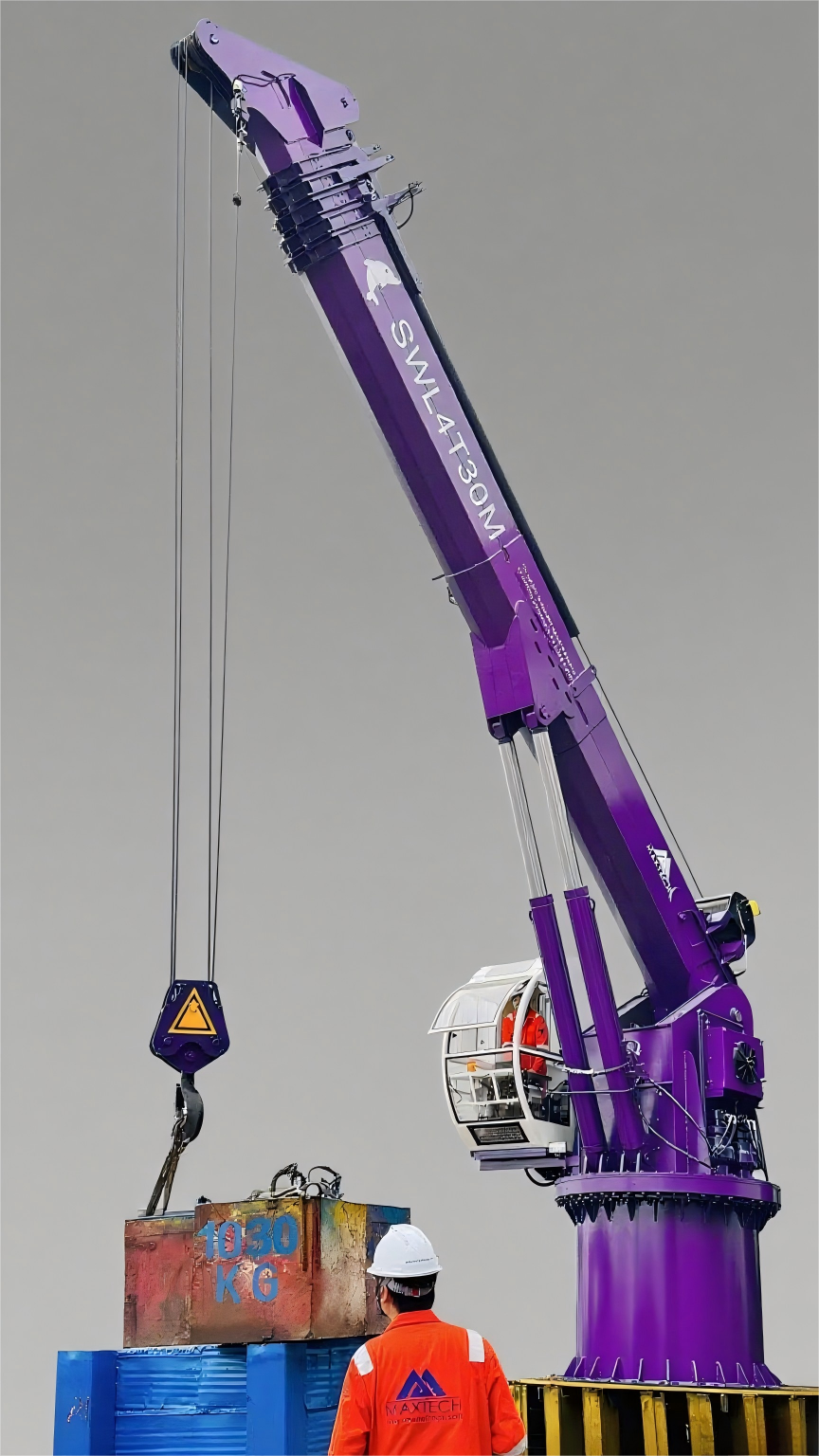

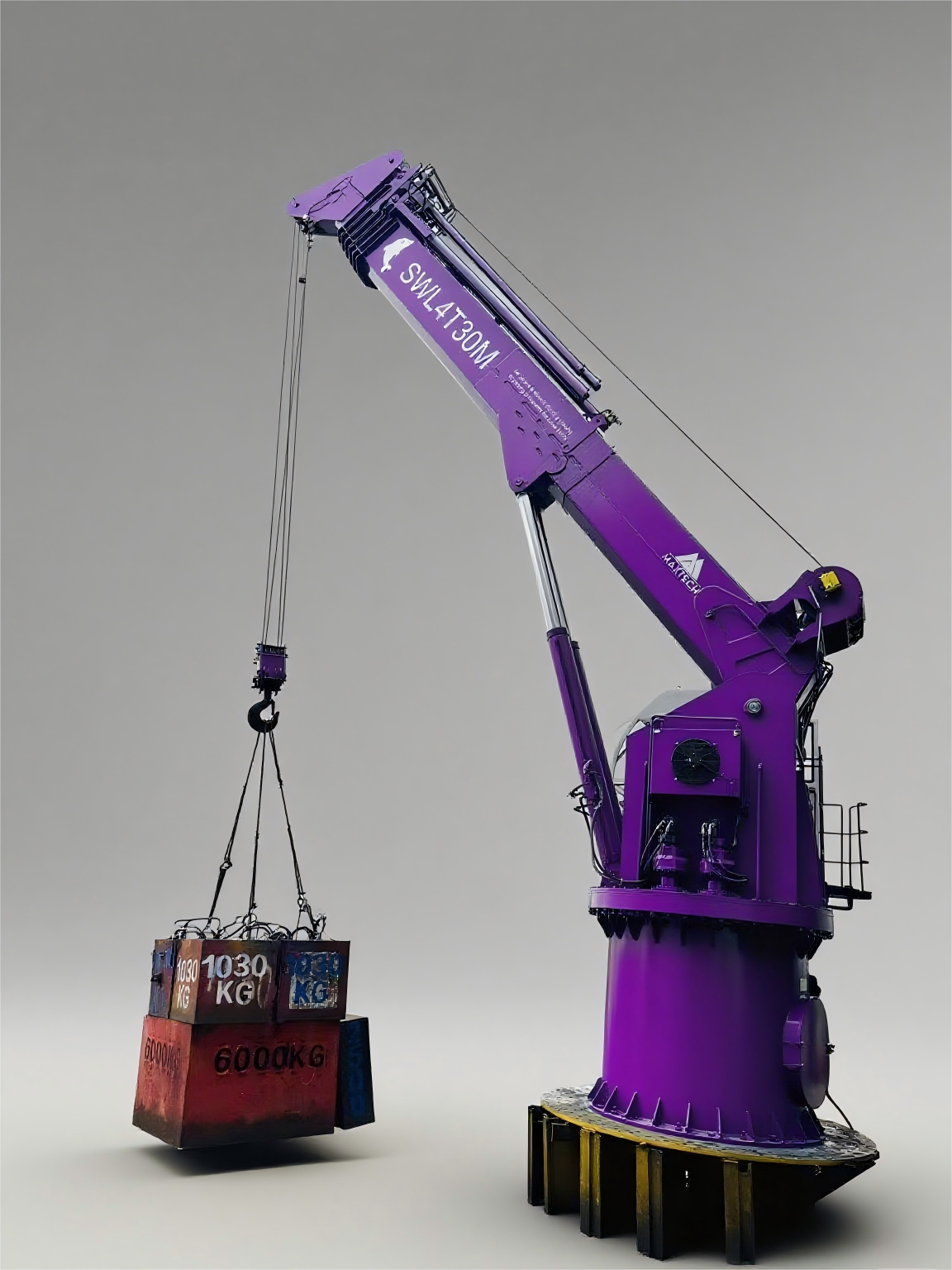

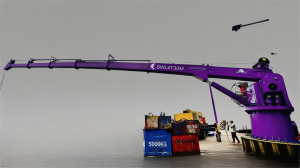

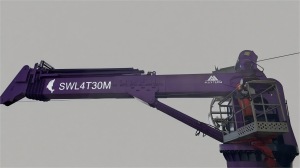

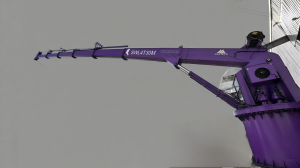

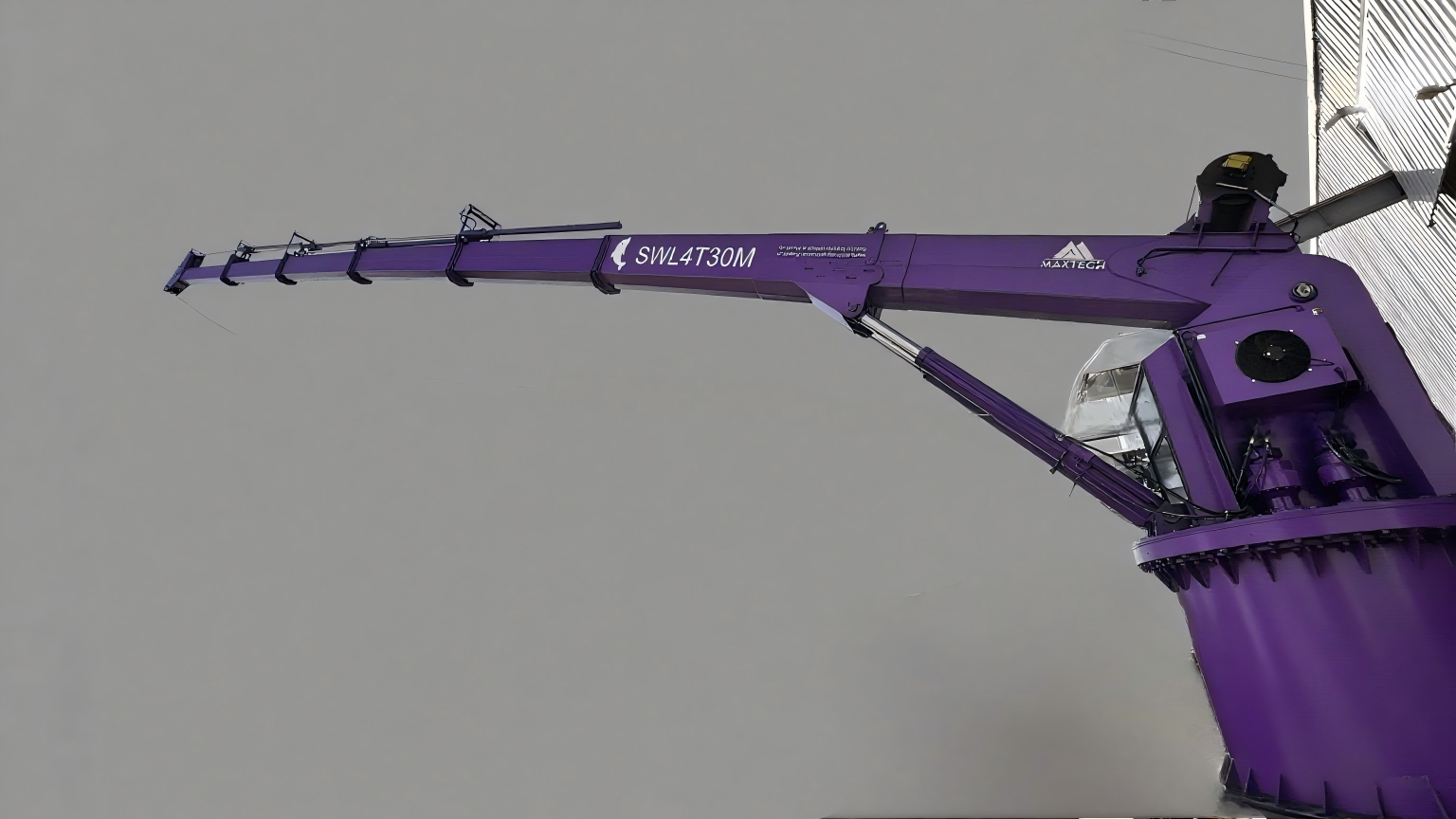

Marine telescopic boom cranes represent a powerful lifting equipment choice for offshore operations. Featuring a base slewing design and high-performance hydraulic cylinder luffing mechanism, these telescopic boom cranes offer exceptionally compact stowed dimensions, maximizing deck space utilization. The unique telescopic boom extension function ensures exceptional working radius flexibility, with maximum outreach reaching 40 meters, enabling both precision short-range operations and long-range handling challenges.

This ship deck crane series boasts a remarkable lifting capacity of 50 metric tons with a moment range from 140 to 12,000 kN·m, capable of safely and efficiently handling supply vessel unloading operations and various material handling tasks. Its lightweight design and simplified structure facilitate easier maintenance, significantly reducing operational costs.

TECHNICAL PARAMETERS
(SWL)	3T	10T		35T
MAX.WORKING RADIUS	39M	15M		6.5M
MIN.WORKING RADIUS	6.5M
LIFTING SPEED (goods)	~15m/min(<12T)		~5m/min(≥12)
LIFTTING HEIGHT	30m
SLEWING SPEED	~0.6r/min
SLEWING ANGLE	360°
LUFFING TIME	~100S
SPEED	1480r/min
Wire rope multiples	5
Rope capacity	200m

Key Features:

Maximum lifting capacity: 50 metric tons

Working radius: up to 40 meters

Long-life surface treatment with excellent corrosion protection

Dual operation modes: cabin control or wireless remote control

Integrated electro-hydraulic drive system with highly integrated power unit

Continuous slewing capability for enhanced work efficiency

Suitable for high/low temperature extreme working conditions

Standard anti-collision system for operational safety

Furthermore, the telescopic boom crane series offers various customizable configuration options according to customer requirements, including explosion-proof certification, special coating solutions, and compliance with major classification society standards (such as ABS, BV, CCS, etc.). Whether for offshore wind farm construction, port handling operations, or marine engineering services, this telescopic boom crane provides reliable and efficient solutions.

Industry Certifications

Quality certificates and factory test reports are provided to provide strong evidence for product quality and allow users to use the product with confidence.Safety Certifications: CE (European Union), ISO 9001(International Organization for Standardization)
