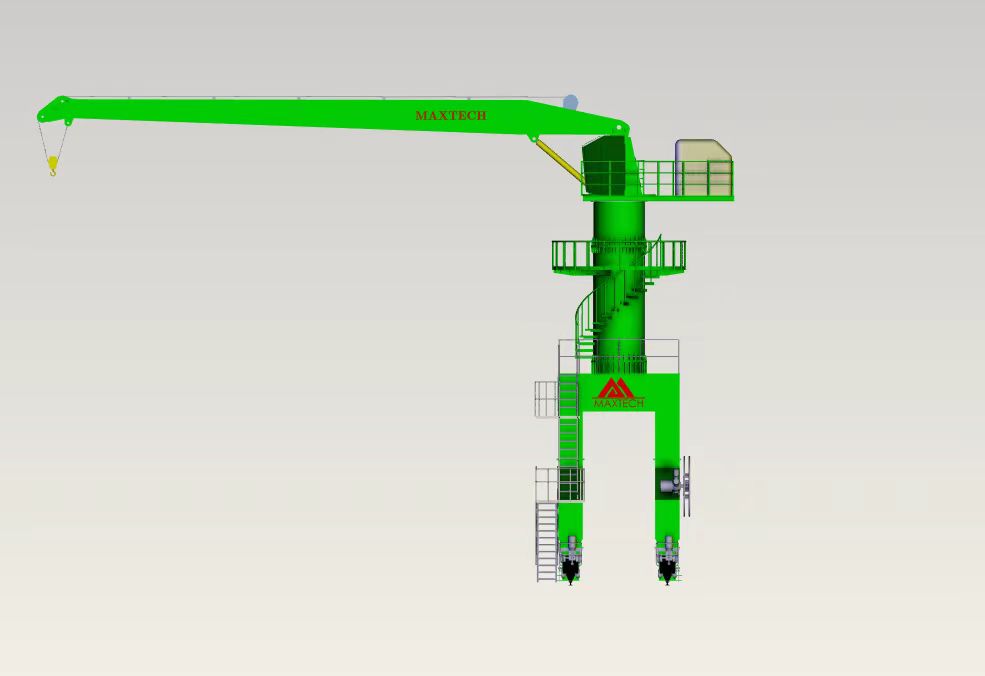

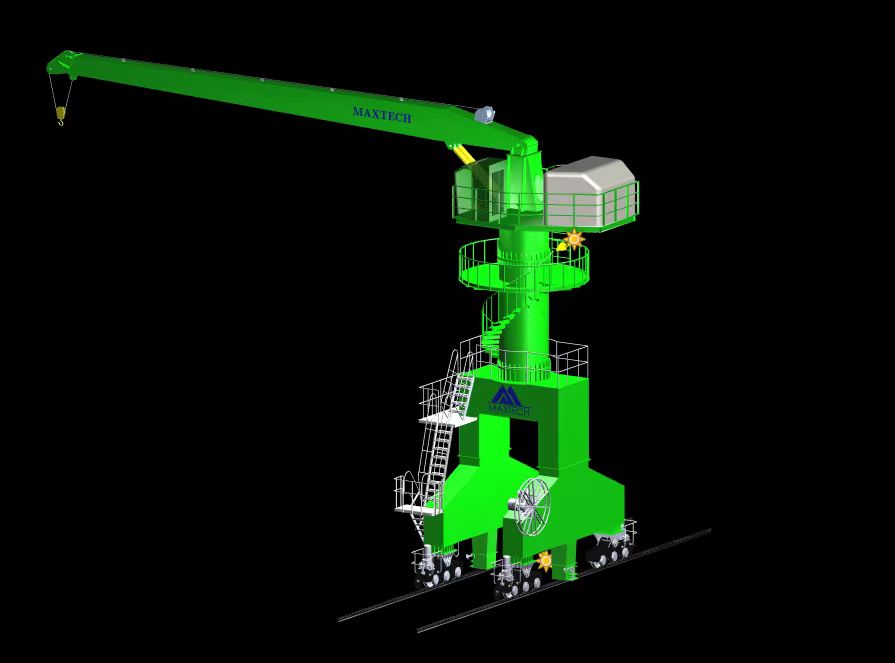

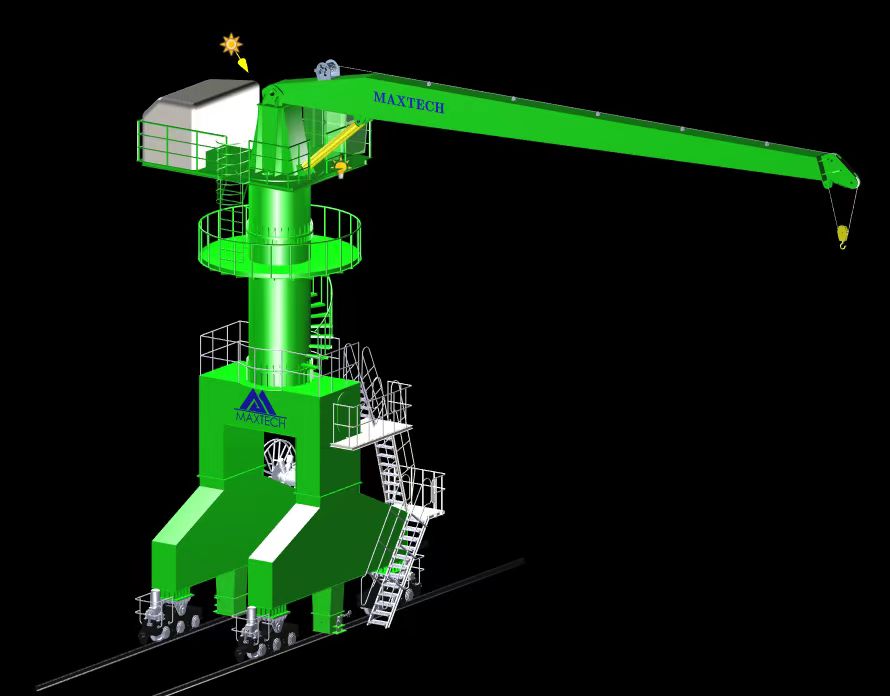

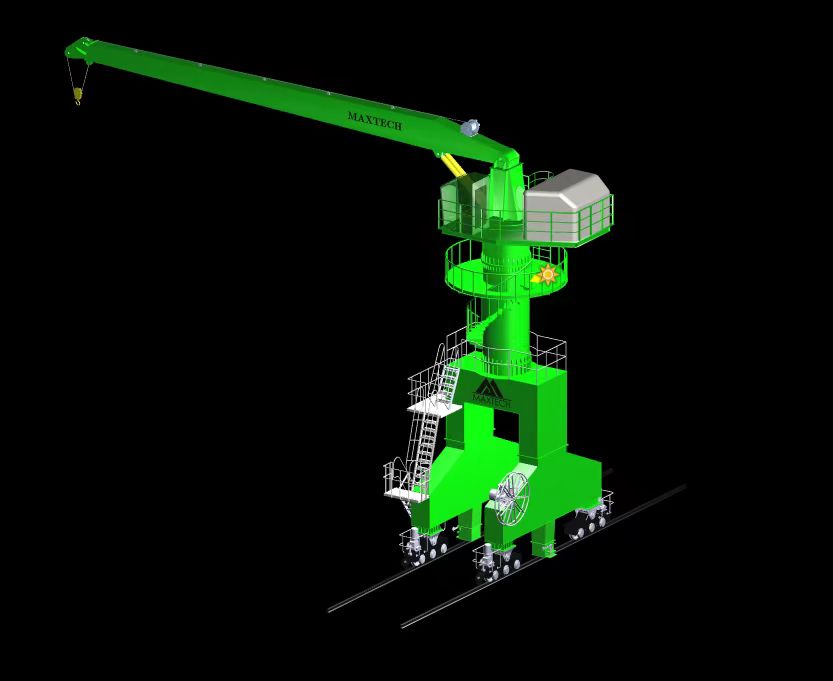

Floating Dock Crane

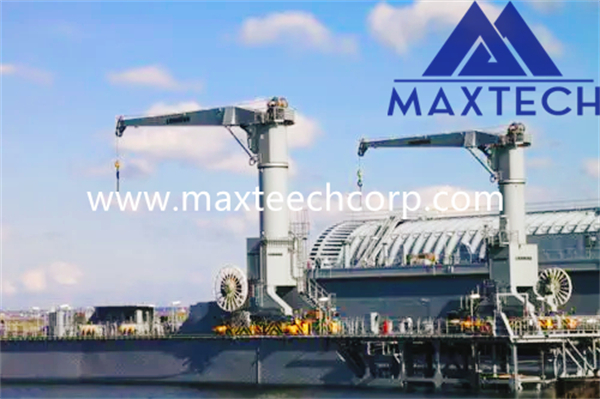

Application
• Installed on both wall of Foloading dock
• For ship repair,rust removal, painting etc
• Run along the rail or fixed to cover dock
Advantages
• Lightweight body, Low purchase cost
• Low power consumption & operating cost
• With hydraulic clamp to prevent sliding
• With anti-tipping to prevent typhoon；
Safe Device:
• Power-off automatic rail clamping system
• Full frequency converters system
• Real time monitoring for traveling condition
• Outreach from 6.m to 50m
• Center lubrication system
• Programmable PLC Electronic Control System
• Electronic, stepless speed, infinitely variable controls for hoisting, traverse and travel.
• IACS class
• Ergonomically designed Cabin for operator
• Smart & safety walkway and ladders
• Monitoring system for loading situation, wind factors, fault display, alarm control in cabin
• 4 travel motion alarms with Aviation obstruction lights
• Minimized wind pressure and wheel load
• Inclination 1°~ 3°design
• Berthing anchor system
• Safety monitoring system
Floating Dock Crane - Data Sheet
| Load Capacity (ton) | Outreach (m) | Lifting height above rail/under rail (m) | Gauge (m) |
| 5 | 15~25 | 15~25/10~15 | 3.2~6.0 |
| 7 | 15~25 | 15~25/10~15 | 3.2~6.0 |
| 10 | 15~25 | 15~25/10~15 | 3.2~6.0 |
| 15 | 20~35 | 20~25/10~15 | 3.2~6.0 |
| 20 | 20~35 | 20~25/10~15 | 3.2~6.0 |
| 25 | 20~35 | 20~25/10~15 | 3.2~6.0 |
| 30 | 20~50 | 20~35/10~15 | 3.2~6.0 |
| 35 | 20~50 | 20~35/10~15 | 3.2~6.0 |
| 40 | 20~50 | 20~35/10~15 | 3.2~6.0 |
| customizable | customizable | customizable | customizable |
| Certificate of Classification society: CCS, BV, ABS, IACS | |||
• Large capacity and customizable outreach, capable for a narrow wing wall.
Testing and Certification
Before leaving the factory, the equipment needs to undergo strict tests, including performance tests (lifting, luffing, and slewing movements with rated and overload loads), emergency stop confirmation, manual brake release tests, limit switch confirmation (under no - load conditions), and insulation resistance measurement. The test records of each item will be submitted to users to ensure reliable product performance.
