MAXTECH Port Feeder Barge Self-Propelled Green Logistics Solution with Integrated Crane Capability
Product Overview

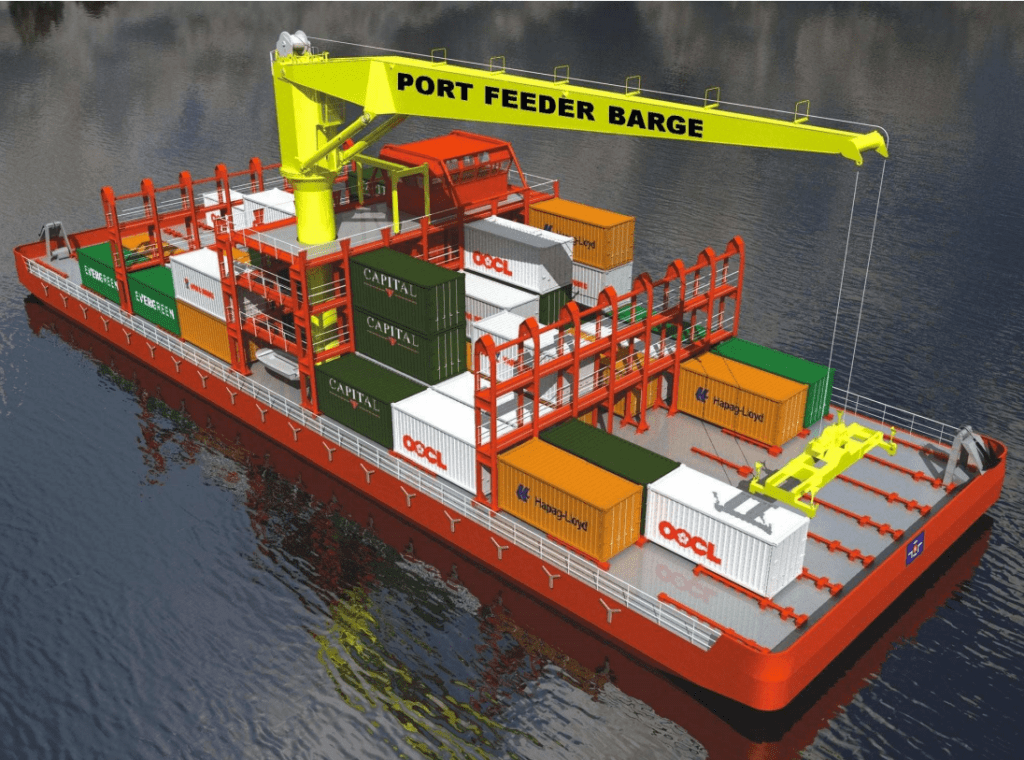

The MAXTECH Port Feeder Barge is a self-propelled container pontoon designed as a sustainable alternative to truck-based container logistics within ports and inland waterways. Equipped with a heavy-duty crane mounted on a high column, this innovative vessel functions as a floating terminal — enabling efficient container transfer between ocean-going vessels, port facilities, and inland waterway destinations.
As a green logistics innovation, the Port Feeder Barge significantly reduces carbon emissions by replacing truck movements with water-based transportation, while simultaneously improving port efficiency by decongesting road networks and providing flexible container handling capabilities.
Features
1. Excellent Stability with high flexibility
2. Heavy-duty crane with maximized lifting capacity and outreach
3. Counter Weight System
4. Self-propelled or Tug Assisted
5. Up to 25,000 tonnes per day with Loading Arm
6. Container Storage Capacity, with automatic spreader
7. Barge with Storage area
8. Equipped with own gear
9. Luffing, hoisting and slewing, can be operated simultaneously at full speed
Technical Specifications
| Lenght | 44 m | 64 m |
| Beam | 22 m | 22 m |
| Radius | Up to 36 m | Up to 36 m |
| Lifting Capacity | Up to 35 tons | Up to 45 tons |
| Speed | Self Propelled or Tug Assisted | Self Propelled or Tug Assisted |
| Accommodation | On Request | On Request |
Applications
| Application | Description |
|---|---|
| Deep-Sea Vessel Interface | Container transfer from large vessels unable to enter shallow ports |
| Inter-Terminal Transfer | Moving containers between different port terminals |
| Depot Connectivity | Transport between port and off-dock container depots |
| Inland Waterway Distribution | Direct container delivery to inland destinations |
| Emergency Response | Rapid container movement during port disruptions |
| Peak Season Overflow | Additional container handling capacity during busy periods |
Complete Product Support & Design Services
MAXTECH provides comprehensive support throughout your Port Feeder Barge project:
Design & Engineering
- Custom Vessel Design: Tailored to specific operational requirements and port conditions
- Crane Selection & Integration: Expert guidance on optimal crane configuration
- Structural Analysis: Finite element analysis ensuring structural integrity
- Stability Calculations: Comprehensive stability assessment for all operating conditions
- Classification Compliance: Design optimized for classification society approval
Manufacturing & Integration
- In-House Crane Production: All cranes manufactured in MAXTECH facilities
- Vessel Construction: Experienced shipyard partners with proven track record
- System Integration: Seamless integration of propulsion, crane, and auxiliary systems
- Factory Testing: Comprehensive testing before delivery
- Quality Assurance: ISO 9001 certified processes throughout
After-Sales Support
- Installation Supervision: On-site support during vessel completion
- Commissioning: Professional commissioning of all systems
- Operator Training: Comprehensive training for barge and crane operations
- Maintenance Programs: Customized maintenance plans
- Spare Parts Supply: Genuine MAXTECH parts with global availability
- Technical Support: Lifetime technical assistance from our engineering team
