Small marine cranes, are compact and lightweight lifting equipment designed specifically for use in marine environments. They are the go-to solution for a wide range of applications, from small - scale cargo handling on fishing boats and yachts to delicate maintenance tasks on offshore platforms.
Design and Structure
Small marine cranes typically feature a compact structure that maximizes functionality within limited spaces. Their designs often incorporate telescopic or knuckle - boom mechanisms, which provide enhanced flexibility in reaching different areas and handling loads at various angles. For example, the telescopic boom can extend and retract, allowing the crane to adjust its working radius as needed. The knuckle - boom, with its articulated joints, enables the crane to maneuver around obstacles and reach tight spots that a traditional straight - boom crane might not access.
The Small Marine Crane is a subcategory of both the Ship Crane and the Marine Crane. Compared with the large Ship Deck Crane, it has a more compact body shape and can adapt to the narrow space on the ship's deck. Small marine cranes have diverse power sources, including Electrical Hydraulic Cranes, Hydraulic Cranes, and Electrical Cranes, etc. Among them, the Electrical Hydraulic Crane combines the precision of electric drive with the strong power of the hydraulic system, making the operation more flexible and efficient. The Hydraulic Crane, on the other hand, relies on its stable hydraulic power output to provide the crane with reliable lifting capacity. The Electrical Crane operates quietly and is environmentally friendly, making it suitable for use in work scenarios with high requirements for noise and emissions.
Lifting Capacity
These small marine cranes are available in a range of lifting capacities, typically from 1 - 10 tons. This makes them suitable for a diverse set of tasks. A 1 - 2 ton crane might be used for lifting small dinghies onto a yacht or moving light equipment around on a fishing vessel. On the other hand, a 10 ton crane could handle more substantial loads such as larger pieces of machinery or construction materials on an offshore support vessel.
Mobility and Flexibility
One of the key advantages of small marine cranes is their mobility and flexibility. They are designed to be easily installed and operated on different types of vessels. Some models are even portable, allowing for quick relocation between different areas of a ship or between multiple vessels. Their ability to work in tight quarters and restricted spaces sets them apart from larger, more cumbersome cranes. This makes them invaluable for operations in crowded harbors, small - sized vessels, or areas with limited deck space.

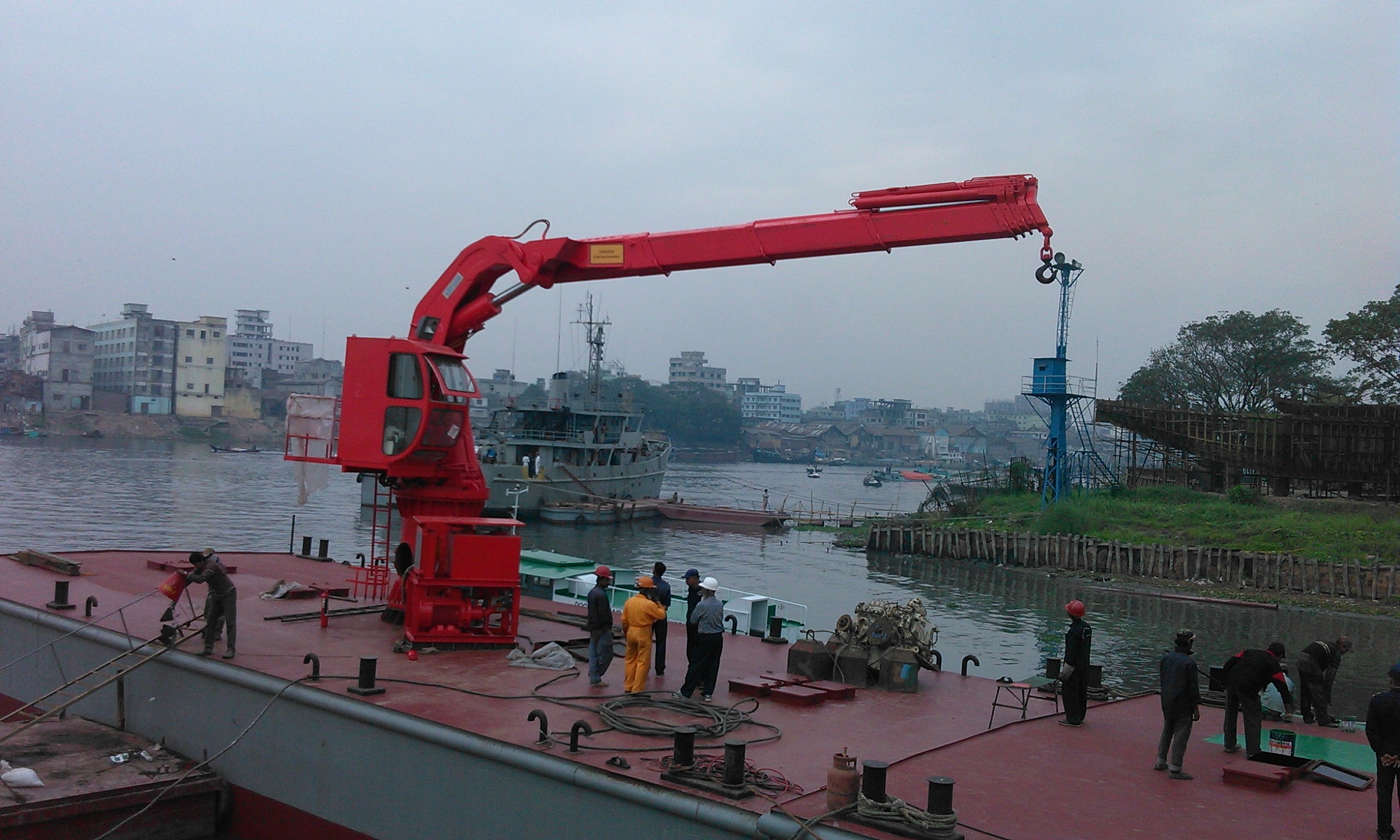

An Example: MAXTECH 5t20m Telescopic Knuckle Boom Crane
The MAXTECH 3t12m Telescopic Knuckle Boom Crane serves as an excellent example of a high - quality small marine crane. With a lifting capacity of 5 tons and a maximum boom length of 20 meters, it offers a good balance between power and reach.
1. Telescopic and Knuckle - Boom Design: Its telescopic feature allows the boom to extend smoothly, increasing the working radius. The knuckle - boom design provides added flexibility, enabling the crane to perform precise lifting operations in various positions. For instance, it can reach over the side of a vessel to pick up items from a smaller boat or platform with ease.
2. Marine - Grade Construction: Built to withstand the harsh marine environment, the MAXTECH crane uses high - quality materials. Stainless steel is applied in many key parts to prevent rust and corrosion, which are major concerns in saltwater conditions. Additionally, it undergoes a special coating treatment to further protect against the corrosive effects of the sea air and water.
3. User - Friendly Operation: This crane is designed for easy operation. It often comes with a wireless remote control system, allowing the operator to control the crane's movements from a safe distance. The controls are intuitive, making it accessible even to operators with relatively little experience. This not only improves the efficiency of the lifting operations but also enhances safety on the vessel.
Applications
Small marine cranes find applications in several maritime sectors:
1. Yachting and Recreational Boating: They are used for tasks such as lifting and lowering water toys like jet skis, dinghies, or diving equipment. In the yachting industry, where deck space is often at a premium, the compact and flexible small marine cranes are ideal for these operations.
2. Fishing Industry: Fishermen use small marine cranes to haul in heavy fishing nets, transfer the catch from smaller boats to larger vessels, or lift and move fishing equipment around the deck.
3. Offshore Support and Maintenance: For offshore platforms, small marine cranes are crucial for maintenance tasks. They can be used to lift replacement parts, tools, and equipment to different levels of the platform. In the wind energy sector, they assist in the installation and maintenance of small - scale wind turbines on offshore platforms.
4. Harbor and Port Operations: In smaller harbors and ports, small marine cranes play a role in loading and unloading light cargo from small vessels. They can also be used for moving equipment and supplies around the dock area.
