In the rough and turbulent marine operations, reliable lifting equipment is the key to ensuring the safety and efficiency of the operations. With its leading technology and innovative design, MAXTECH has created a series of marine cranes with excellent performance, becoming a solid backing in the field of marine engineering.

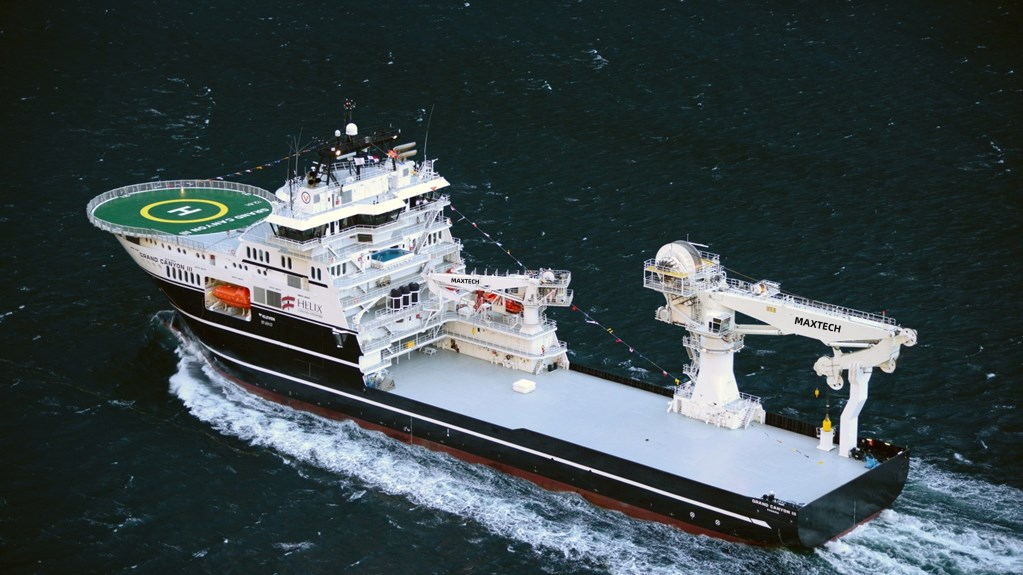

The MAXTECH ship deck crane integrates advanced active heave compensation (AHC) and motion control technology. Whether in harsh sea conditions or complex operating environments, it can ensure the safe and stable handling of loads. Its electrical hydraulic cranes and hydraulic cranes adopt high-precision hydraulic systems, which are powerful and provide precise control, effectively improving the operation efficiency and safety.

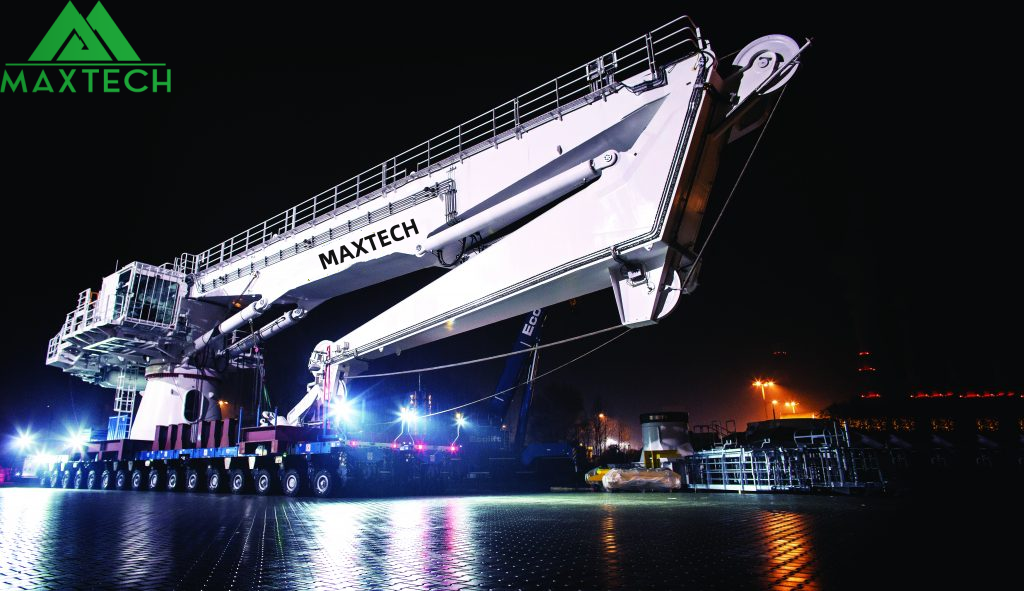

MAXTECH offers a variety of types of cranes to meet different operational needs. The telescopic boom crane, with its flexible telescopic function, can be freely adjusted within an operating radius of 15 to 25 meters, making it suitable for a variety of complex scenarios. The stiff boom crane has a sturdy structure and can bear heavy loads, which is often used for lifting heavy goods. The knuckle boom crane, on the other hand, has excellent flexibility and mobility and can operate freely in areas with limited space. These cranes all fall within the category of marine cranes and are widely used in ship loading and unloading, offshore engineering, and other fields.
In terms of specifications, the safe working load (SWL) of MAXTECH cranes ranges from 5 tons to 100 tons, adapting to the lifting requirements of goods of different weights. Its unique splash zone load control and constant tension capability further ensure the safety and stability of the operations. At the same time, functions such as remote operation, integrated data logging system, and remote assistance/monitoring have realized intelligent management and efficient operation.
The technical parameter of MAXTECH ship deck crane:
|
Crane Type |
Outreach (m) | Lifting Capacity (t) | Lifting Moment (kNm) | Total Moment (kNm) | Pedestal Diameter (mm) |
Dead Weight (t) |
| MAX 200 | 6-16 | 3.5-0.9 | 144-210 | 270 | 885 | 2.7-3.2 |
| MAX 400 | 6-16 | 5.6-1.7 | 288-336 | 424 | 885 | 3.2-3.7 |
| MAX 600 | 6-20 | 10-2.3 | 460-600 | 737 | 1095 | 4.4-5.5 |
| MAX 900 | 6-20 | 14.2-3.2 | 640-852 | 1039 | 1325 | 5.9-7.0 |
| MAX 1200 | 6-24 | 19-3.5 | 840-1140 | 1409 | 1490 | 7.8-10.2 |
| MAX 1500 | 7-24 | 20.3-4.6 | 1104-1421 | 1765 | 1490 | 9.2-11.3 |
| MAX 1800 | 7-24 | 25.6-5.4 | 1296-1792 | 2202 | 1770 | 11.4-14.1 |
| MAX 3000 | 21 | 12.5 | 2625 | 3750 | 1775 | 24.8 |
Whether it is a provision crane, a ship crane, or a general lifting crane, MAXTECH always safeguards marine operations with excellent quality and advanced technology, providing users with reliable, flexible, and efficient lifting solutions, and is a trustworthy partner in the field of marine engineering.
Post time: Apr-30-2025
