Marine Cranes operate under harsh conditions including high salt spray, high humidity, heavy loads, and continuous duty. Lubrication is not only fundamental for reducing wear and minimizing failures but also a core measure to ensure operational safety, extend service life, and control maintenance costs. Drawing on years of experience in marine equipment support and on-site service, Maxtech delivers standardized, scenario-based, and implementable lubrication solutions for marine cranes, covering key points and management processes throughout the equipment lifecycle.
1. Why Lubrication Is Critical for Marine Cranes
- Resists salt spray, seawater, and temperature fluctuations to prevent corrosion and pitting
- Reduces friction and shock loads in slewing, luffing, and hoisting mechanisms
- Minimizes downtime for maintenance, improving handling efficiency and vessel availability
- Extends the service life of core components: slewing bearings, gearboxes, bearings, wire ropes, etc.
- Meets classification society rules and original equipment manufacturer (OEM) maintenance requirements for compliant operation

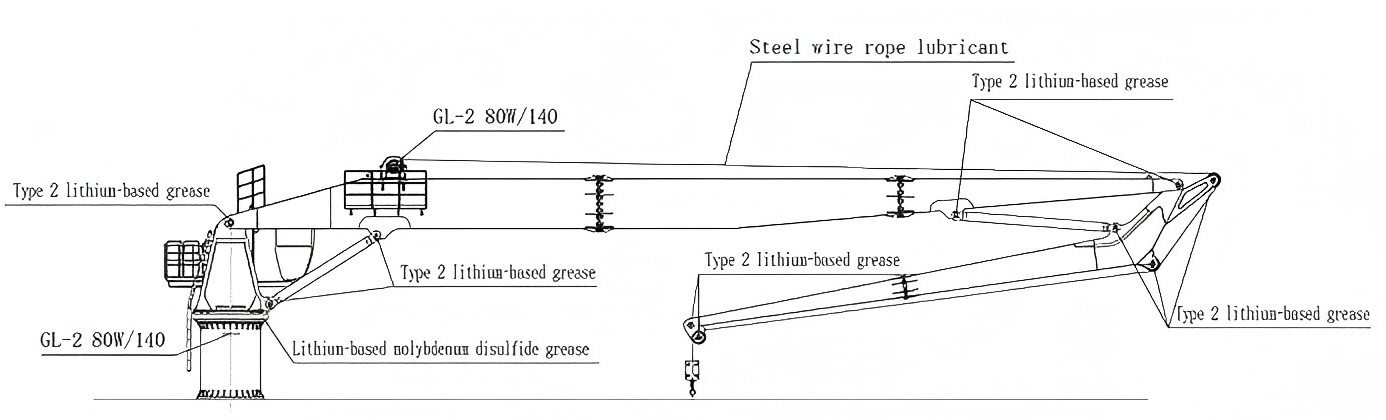

2. Maxtech Recommended Key Lubrication Points and Standard Solutions

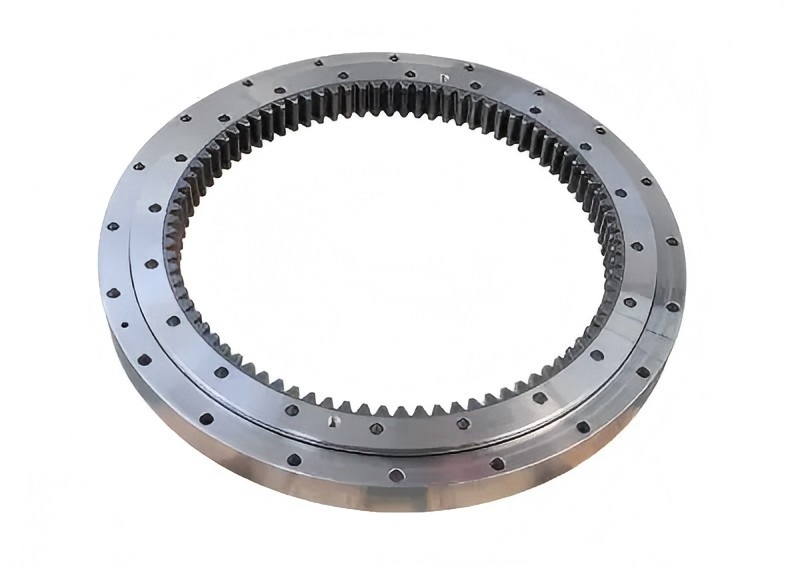

1) Slewing Mechanism (Slewing Bearing & Slewing Gear)
- Focus: Heavy load, low speed, shock loading, water ingress susceptibility
- Lubricant: MoS₂-containing lithium complex grease for open gears, water-resistant, salt-spray resistant, long-lasting
- Interval: Replenish monthly; clean and replace grease semi-annually
- Key Points: Remove old grease and contaminants first; inject evenly until fresh grease slightly overflows to fully cover raceways and gear teeth

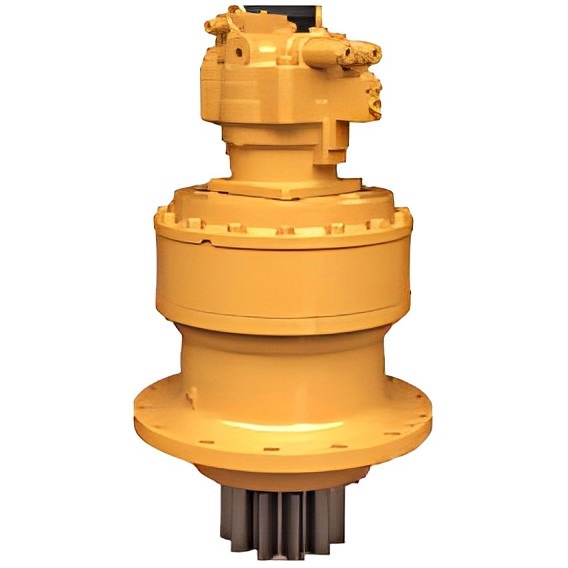

2) Reducers (Hoist, Luffing, Slewing)
- Focus: Gear meshing, bearing loading, stable oil performance
- Lubricant: Marine industrial gear oil (commonly ISO VG 220/320), OEM-certified
- Interval: Initial service at 500 hours for new equipment; replace every 1,000 hours or 6 months thereafter
- Key Points: Preheat before draining oil; thoroughly clean the gearbox; never mix different oils

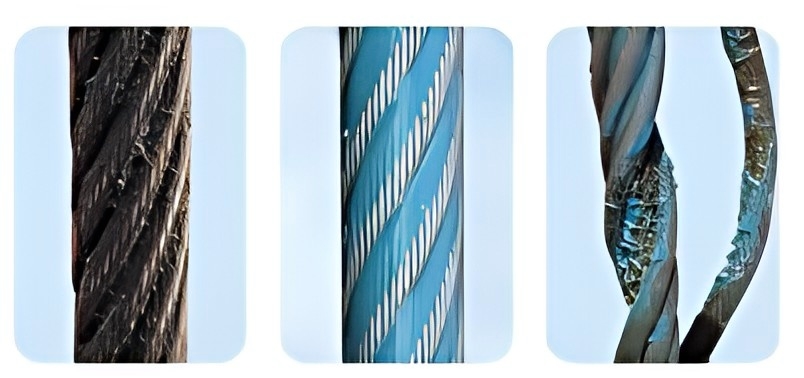

3) Wire Ropes & Sheave Assemblies
- Focus: Internal penetration, surface protection, friction and noise reduction
- Lubricant: Specialized wire rope grease, high penetration, strong adhesion, water and rust resistant
- Interval: Every 1–3 months; shorten interval for high-frequency operation
- Key Points: Clean surfaces before uniform application; ensure full penetration into rope cores and strands

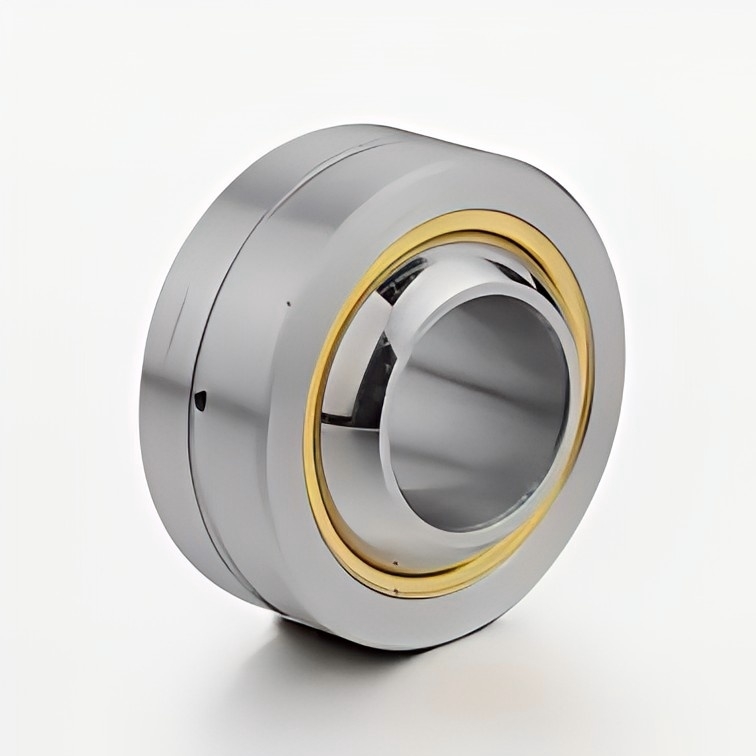

4) Articulation Points, Pins, and Spherical Bearings
- Focus: Reciprocating oscillation, dust and water protection
- Lubricant: No. 2 lithium-based grease
- Interval: Replenish monthly or after heavy-duty operation
Key Points: Avoid excess grease buildup that traps dust; keep grease fittings clear
3. Four Principles of Maxtech Lubrication Management
- Specialization: Prioritize salt-spray and water-emulsification resistant lubricants; avoid mixing with standard industrial lubricants
- Precision: Match lubricants and intervals by component, load, and environment; reject a one-size-fits-all approach
- Standardization: Follow cleaning → inspection → greasing/oil change → re-inspection; maintain traceable records
- Prevention: Replace reactive repairs with periodic inspection and condition monitoring to reduce sudden failures
4. Maxtech Intelligent Lubrication Solutions
For large marine cranes and unattended deck equipment, Maxtech provides centralized automatic lubrication systems:
- Simultaneous, precise, metered lubrication at multiple points; eliminates human error from missed or over-greasing
- Adapted to marine environments (-20°C to 60°C); IP65 protection, salt-spray and corrosion resistant
- Integrates with equipment monitoring for active alerts on pressure, level, and faults
- Significantly reduces maintenance workload, extends service intervals, and improves equipment reliability
5. Routine Inspection and Safety Tips
- Pre-operation check: Inspect oil levels, grease fittings, leaks, unusual noise, and temperature rise
- Regular maintenance: Establish a lubrication log to record points, lubricants, quantity, and dates
- Abnormality response: Stop operation immediately for inspection if overheating, unusual noise, leakage, or gear wear occurs
- Compliance: Meet classification society and OEM maintenance standards; keep records for verification
Proper lubrication is the foundation for safe, efficient, and long-life operation of marine cranes. With marine-scenario adaptation, standardized processes, professional products, and intelligent solutions, Maxtech provides one-stop support to ship owners and shipyards worldwide. We safeguard every lifting operation with reliable technology, helping equipment achieve fewer failures, longer service cycles, and lower operating costs.
