In material handling, the gantry crane is a formidable and versatile equipment, revolutionizing load handling in outdoor yards, ports, and construction sites.
I. What is a Gantry Crane?
A gantry crane features a gantry - shaped metal frame (like a door) with a lifting beam (main girder) supported by two legs. These legs move along ground rails, enabling horizontal travel. Some designs have cantilevered main girder ends for a wider working range.
II. Types of Gantry Cranes
1. By Gantry Structure
Full - gantry Crane: Stable, with no main girder overhangs, suitable for regular tasks in confined spaces.
Semi - gantry Crane: Legs have height differences, adapting to uneven ground or existing structures in special industrial settings.

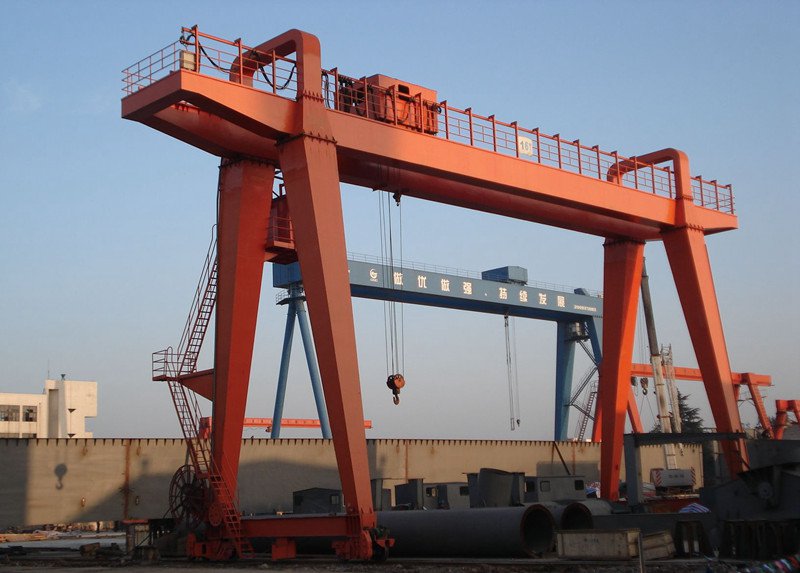

Full-Gantry Crane

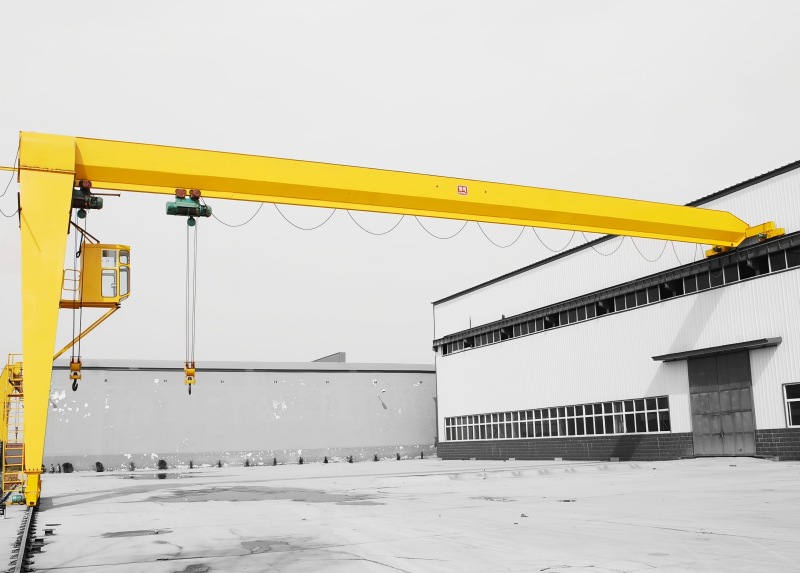

Semi-Gantry Crane
2. By Cantilever Design
Double - cantilever Gantry Crane: Main girder extends beyond both legs, optimizing site use, ideal for ports or large freight yards.
Single - cantilever Gantry Crane: One - end extension, practical for space - restricted areas like narrow plants.
3. By Main Girder Structure
Single - girder Gantry Crane: Simple, low - cost, with a box - shaped frame. Suited for small - to - medium loads (q ≤ 50t, s ≤ 35m), e.g., in small factories.
Double - girder Gantry Crane: Strong, large - span, stable. Varieties include:
a. Box - girder Crane: High - safety, large - stiffness, for heavy - duty ops (e.g., shipyards), but costly and heavy.
b. Truss - girder Crane: Low - cost, light, good wind - resistance, but needs frequent welding - point checks, for small loads.
c. Honeycomb - girder Crane: Combines truss and box features, reliable, for frequent or heavy - load sites (e.g., bridge beam yards).

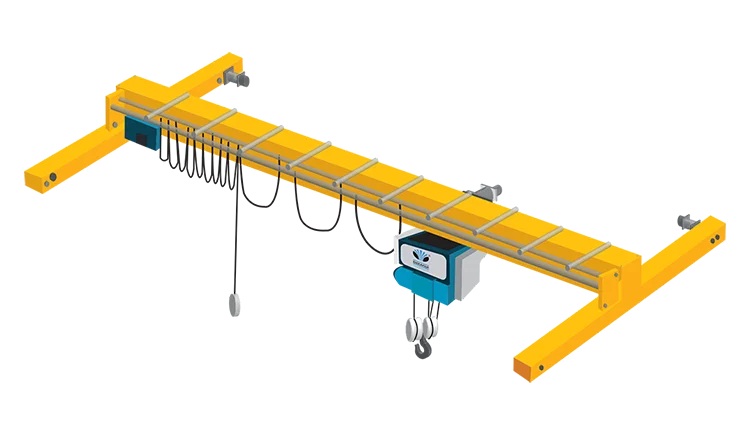

Single Grider Crane

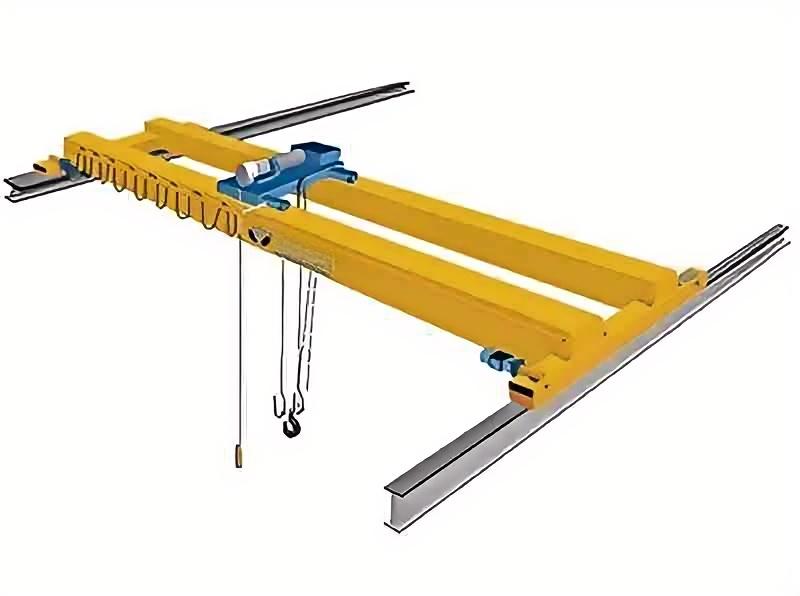

Double Grider Crane
4. By Application
General Gantry Crane: Wide - use, handles various goods, lifting capacity below 100 tons, span 4 - 39m.
Hydropower Station Gantry Crane: Lifts gates, installs, 80 - 500 tons capacity, small span (8 - 16m).
Shipbuilding Gantry Crane: Assembles hulls, 100 - 1500 tons capacity, large span (up to 185m).
Container Gantry Crane: Stacks/loads containers, rail or rubber - tired, high working class, spans up to 60m.
III. Structure and Working Principle
1. Main Components
Gantry Frame: Steel - made, connects main girders for stability.
Main Girder: Steel beam, sized by load and frequency.
Lifting Mechanism: Includes motor, reducer, etc., controls lifting.
Traveling Mechanism: Has wheels, motor, moves the crane.
Trolley Traveling Mechanism: Moves goods via motor, ropes, etc.
Electrical Control System: Monitors and controls operations.
2. Working Principle
Operator moves the crane to position.
Trolley grabs and lifts goods.
Traveling mechanism moves the loaded girder.
Trolley places goods at destination.
IV. Advantages and Disadvantages
1. Advantages
High Site Utilization: Rail - run, no tire/generator interference, uses space well.
Large Working Range: Cantilevers and rail movement cover wide areas.
Strong Adaptability: Customizable to sites/needs (e.g., semi - gantry for uneven ground).
Cost - effective Operation: Electric - driven, low maintenance, energy - saving possible.
High Automation: Precise handling via control and positioning systems.
2. Disadvantages
Weather - Susceptible: Outdoor use risks rust (from rain) and sliding/overturning (from wind), needing protective measures.
Site - Dependent: Relies on rails; laying/repairing rails costs time and money.
High Initial Investment: Design, manufacturing, and installation are costly, especially for large or special cranes.
V. Application Fields
Gantry cranes serve:
Hydraulic Engineering: Build/maintain dams, ship locks, lift gates.
Construction: Handle/install building materials in high - rises, bridges.
Manufacturing: Assemble large workpieces in machinery, auto industries.
Petrochemical, Mining, Shipbuilding: Move heavy equipment, raw materials.
Ports: Load/unload containers, bulk cargo.
The gantry crane, with diverse types, stable structure, and wide use, is key in modern material handling. Despite limits, innovation boosts its performance, aiding industry efficiency.
