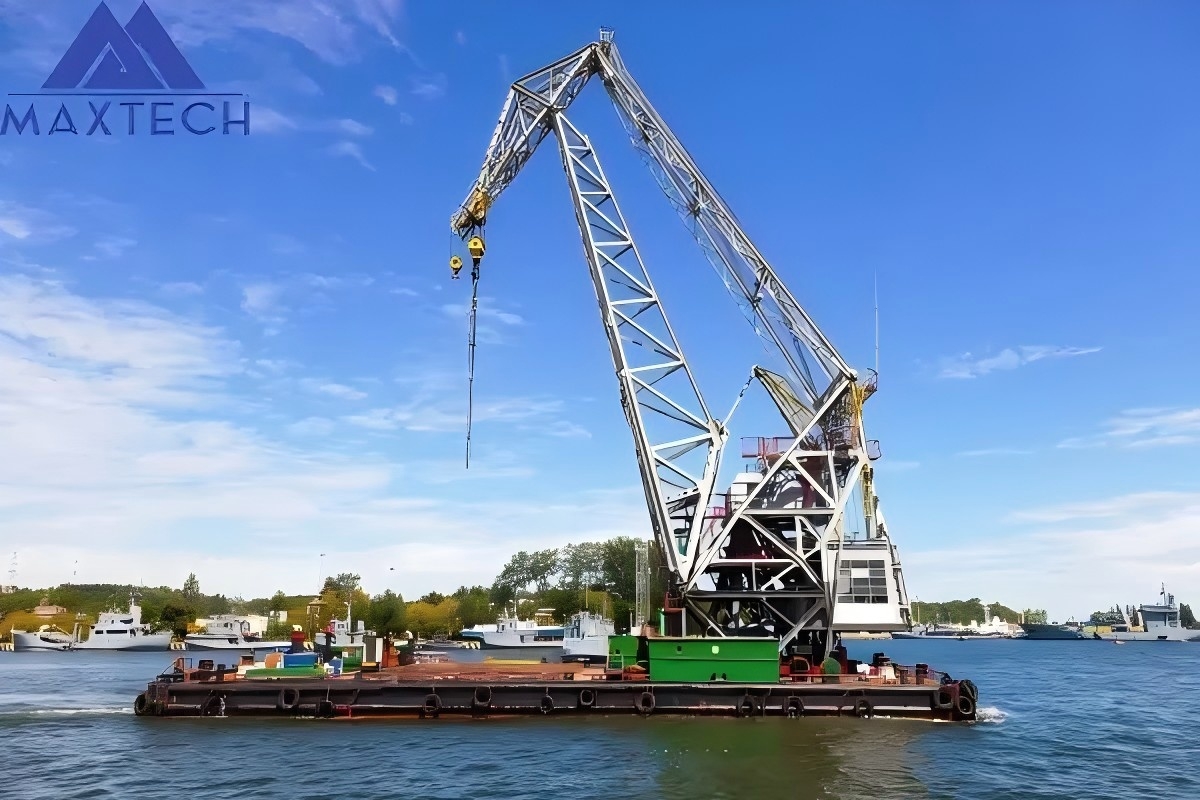

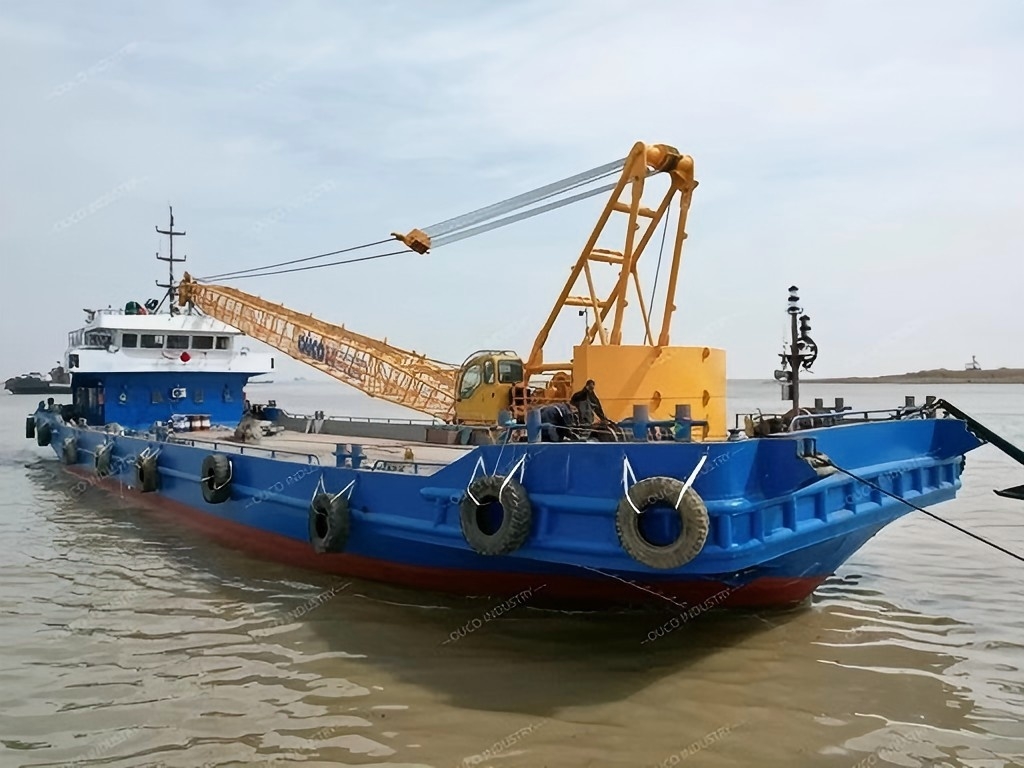

A floating craneis a crane mounted on a barge, pontoon, or a specially designed vessel. Instead of being Fixed to land or a structure, it floats on water and can be towed or self‑propelled to different work sites. Here’s how it works:
1. The floating platform provides stability
The floating cranesits on a large hull (barge). When the barge Crane Lifts a heavy load, the barge may tilt slightly. To counter this, water ballast tanks inside the hull are filled or emptied automatically or manually, keeping the barge stable. Some large floating cranes have a “ship‑shape” hull with propulsion.
2. Crane structure – similar to land‑based cranes
Most floating dock cranes use a revolving superstructure mounted on the barge. Key components include:
- Boom – can be a lattice boom, telescopic boom, or knuckle boom.
- Hoist winches – raise and lower the load.
- Slewing ring – allows 360° rotation.
- Luffing mechanism – changes the boom angle.
3. Lifting operation
The floating crane works like any other offshore crane: the hook is lowered, attached to the load, then hoisted. Because the barge can move with waves, modern floating cranes often incorporate heave compensation or anti‑sway systems to keep the load steady during lifting.
4. Mobility
Floating cranes are either:
- Towed – moved by tugboats (common for simple barges).
- Self‑propelled – have their own engines and propulsion, allowing precise positioning without tugs.
5. Typical applications
- Shipbuilding & repair (lifting heavy engines, propellers, or hull sections)

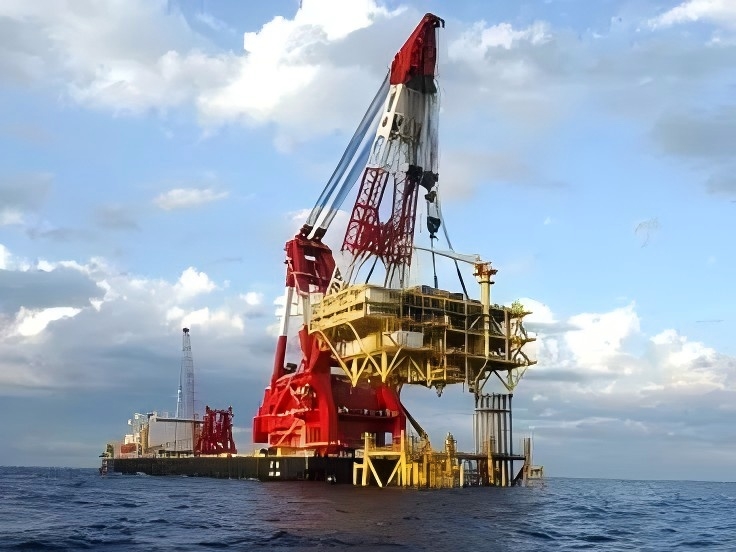

- Offshore construction (placing wind turbine foundations, oil platform modules)
- Salvage operations (recovering sunken vessels)
- Bridge building over water
- Port and harbour maintenance
Key advantages over land cranes:
- Mobility – can be relocated to any water‑accessible site.
- High capacity – some floating cranes lift thousands of tons.
- No land infrastructure – no need for rails or heavy foundations.
Example: MAXTECH floating cranes
MAXTECH designs floating cranes (barge‑mounted) for marine and port applications. Our floating cranes feature:
- Custom boom types (stiff boom, telescopic, knuckle) for different water depths and reaches.
- Optional MAX+Smarts AI monitoring – real‑time wire rope inspection, slewing bearing wear detection, and predictive maintenance.
- Full classification society certificates (BV, ABS, CCS, NK, LR, API‑2C) for offshore and marine use.
- Explosion‑proof configurations for hazardous environments (e.g., oil terminals).
Whether you need a 3t unit for small barges or a 100t+ heavy‑lift floating crane, the basic principle remains the same: float, stabilise, lift, and move. The addition of smart monitoring makes modern floating cranes safer and more efficient.
