In marine operating scenarios, marine cranes serve as core loading/unloading equipment. Their safe and efficient operation relies on precise adaptation to the dynamic attitudes of vessels — heel and trim are critical design parameters that directly determine the structural strength, load capacity, and operational stability of cranes. Taking MAXTECH, a world-renowned manufacturer of marine cranes, as an example, the company incorporates heel and trim requirements into the core design standards of its full product line. Through dual control of compliance and practicality, MAXTECH ensures operational safety under various sea conditions.
1. Core Definitions of Heel and Trim
1.1 Heel
Heel refers to the transverse inclination of a vessel about its fore-and-aft axis, i.e., the height difference between the port and starboard sides, measured in degrees (°). Caused by wind, waves, or uneven cargo loading/unloading, heel directly affects the levelness of crane booms and the offset of load centers of gravity, serving as a key indicator of a crane’s lateral stability.
1.2 Trim
Trim refers to the longitudinal inclination of a vessel about its transverse axis, i.e., the height difference between the bow and stern, measured in degrees (°). Induced by vessel weight changes, wave-induced pitching, or load position shifts, trim alters the pitch angle of crane booms and the longitudinal load distribution, affecting the force balance of booms and foundations.
Vessels operate continuously under heel and trim conditions at sea. Combined with dynamic loads from lifting operations, this subjects critical crane components (e.g., foundations, booms, and slewing bearings) to combined stresses. Without design accounting for inclination angles, structures may deform, crack, or even lose stability. When designing its knuckle boom and telescopic boom marine cranes, MAXTECH conducts finite element analysis based on standard inclination angles to ensure that booms, pins, hydraulic pipelines, and other components meet strength requirements under combined stresses.
2.2 Meeting Regulatory Requirements for Compliance Certification
Marine cranes must obtain certifications from leading classification societies such as CCS, BV, and ABS. A heel of ≤5° and trim of ≤2° is the globally unified standard operating condition. For instance, IMO MSC.1/Circ.1477 specifies that cranes must operate safely at full load under a simultaneous heel of 5° and trim of 2° in port operations. The China Classification Society (CCS) Rules for Lifting Appliances in Ships and Offshore Installations also uses these angles as the benchmark for calculating Safe Working Load (SWL). MAXTECH products strictly comply with these regulations to gain access to global maritime markets.
2.3 Adapting to Complex Sea Conditions to Expand Operational Scope
In practice, vessels may exceed standard operating conditions due to sea states, resulting in a heel of 5°–7° and trim of 2°–3°. In such cases, inclination-load reduction design is required to maintain operations safely. If heel exceeds 7° or trim exceeds 3°, lifting must be suspended and vessel ballast adjusted. MAXTECH’s AHC (Active Heave Compensation) crane series uses motion control technology to adapt to harsher sea conditions, further expanding operational scenarios.
3. Design Standards and Practical Guidelines for Heel and Trim
3.1 Core Design Standards

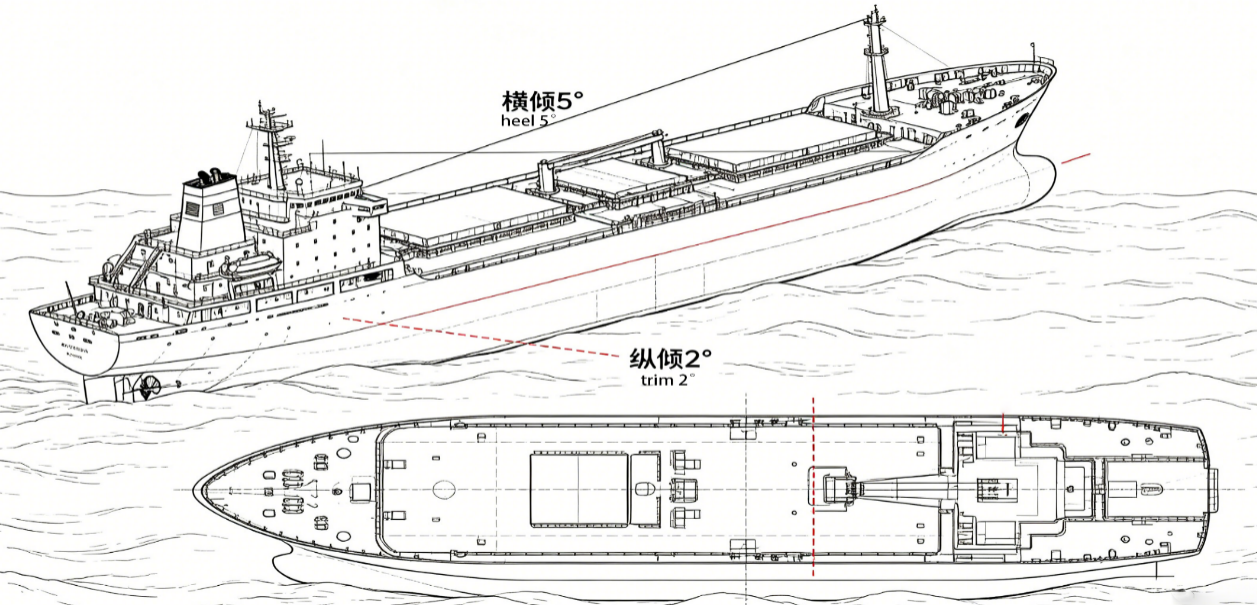

| Operating Condition | Heel Requirement | Trim Requirement | Applicable Scenario |
| Standard Operating Condition | ≤5° | ≤2° | Routine operations in ports and sheltered waters |
| Load-Reduced Operating Condition | 5°–7° | 2°–3° | Mild sea conditions; operation with load reduction per load chart |
| Prohibited Operating Condition | ＞7° | ＞3° | Extreme sea conditions; vessel attitude adjustment required |
| Non-Operating Stowage Condition | ≤30° | ≤10°–15° | Vessel navigation; structural bearing only |
3.2 MAXTECH’s Design Practices
- Compliance Design: All models meet BV and CCS regulations, with no reduction in rated load under standard conditions. Design reliability is verified through multiple strength tests.
- Customized Adaptation: For special regions with high temperatures and harsh sea conditions (e.g., the Middle East), hydraulic systems and structural strength are optimized to enable stable operation under load-reduced conditions (heel ≤7°, trim ≤3°), suitable for platform service vessels.
- Safety Protection: Equipped with wireless remote control and overload protection systems that automatically alert when vessel inclination approaches safety thresholds. Hydraulic pipeline layouts are optimized to prevent oil leakage caused by inclination.
4. Conclusion
Heel and trim are fundamental prerequisites for marine crane design, directly related to equipment safety, compliance, and operational efficiency. From compliant design under standard conditions to load reduction adaptation under extreme conditions, and customized optimization for special scenarios, every step must follow regulations and practical needs. With heel and trim as core design elements, MAXTECH controls the entire technology chain to provide global customers with reliable lifting solutions adaptable to diverse maritime scenarios, confirming the central role of these two parameters in marine crane design.
